TRICONEX 9566-810 7400150-370 3000540-380

TRICONEX 9566-810 (7400150-370 / 3000540-380)

Product Overview

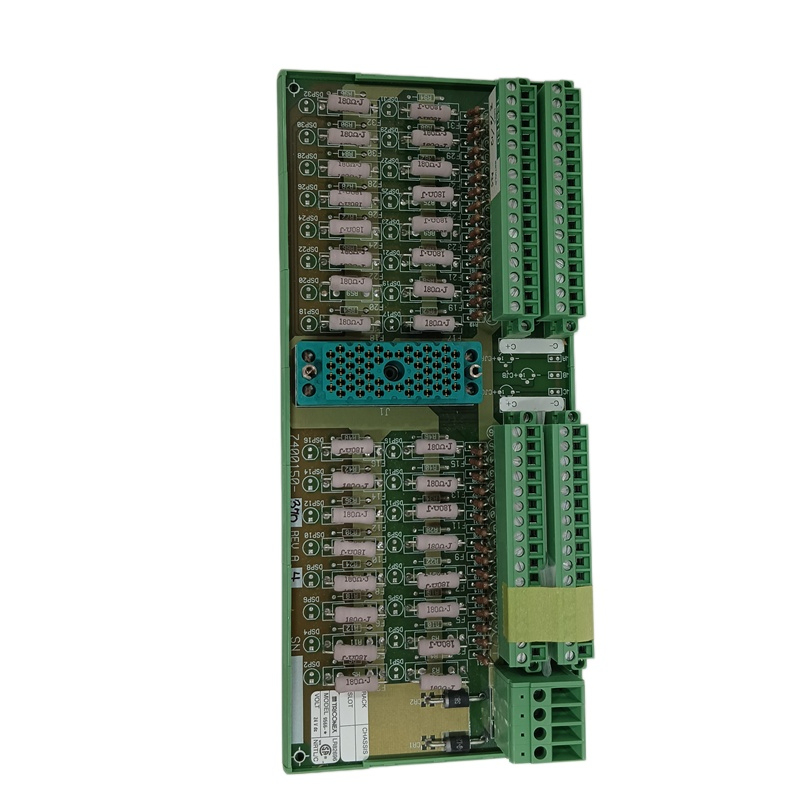

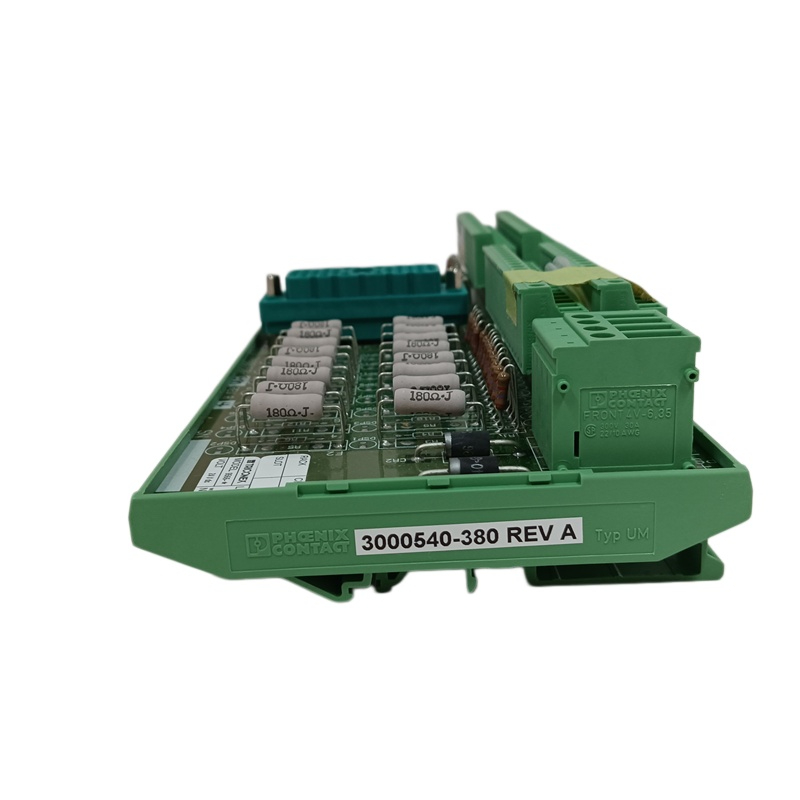

The TRICONEX 9566-810 (7400150-370 / 3000540-380) is a high-reliability Safety I/O module used in Triconex Safety Instrumented Systems (SIS). It is designed with Triple Modular Redundancy (TMR) architecture to ensure fault-tolerant operation in mission-critical industrial environments such as oil & gas, power generation, and chemical processing.

This module is part of the Triconex (Schneider Electric) safety control platform, providing secure and stable signal processing for both input and output operations.

---

Key Features

• Triple Modular Redundancy (TMR)
  Ensures continuous operation and eliminates single points of failure
• High Safety Integrity (SIL 3)
  Complies with IEC 61508 for critical safety applications
• Flexible I/O Configuration
  Supports digital input/output and multi-channel configurations
• Robust Industrial Design
  Suitable for harsh environments with high reliability and stability
• Advanced Diagnostics
  Continuous self-monitoring for fault detection and predictive maintenance
• Wide Communication Compatibility
  Supports industrial protocols such as Modbus and Ethernet/IP

---

Technical Specifications

Parameter	Specification
Model	9566-810
Part Numbers	7400150-370 / 3000540-380
System Type	Safety Instrumented System (SIS)
Architecture	Triple Modular Redundancy (TMR)
Operating Voltage	24 VDC
Power Consumption	Approx. 3W
Operating Temperature	-20°C to +60°C
I/O Capacity	Up to 32 inputs / multi-channel configuration
Mounting	Rack-mounted module
Protection	Industrial-grade design

(Specs may vary slightly depending on configuration)

---

Functions & Applications

• Safety Instrumented Systems (SIS)
• Emergency Shutdown Systems (ESD)
• Process control and monitoring
• Oil & gas, petrochemical, and power plants
• Critical infrastructure automation

This module plays a key role in real-time signal processing and safety interlocks, ensuring safe operation of industrial processes.

---

Related Part Numbers

• 7400150-370 (Terminal/Interface module)
• 3000540-380 (Digital output module)
• TRICONEX 9566 series modules

---

Summary

The TRICONEX 9566-810 7400150-370 3000540-380 is a mission-critical safety I/O module built for high-integrity systems. With its TMR architecture, SIL 3 certification, and industrial-grade reliability, it is widely used in industries where safety and uptime are essential.
