TRICONEX MP3009 Main Processor

The TRICONEX MP3009 is a high-performance Main Processor (MP) module designed for Triconex Safety Instrumented Systems (SIS).

Get Instant Quote
Product Details

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: xrjtina@gmail.com

•Tel: + 86-15359273796（WhatsApp）

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

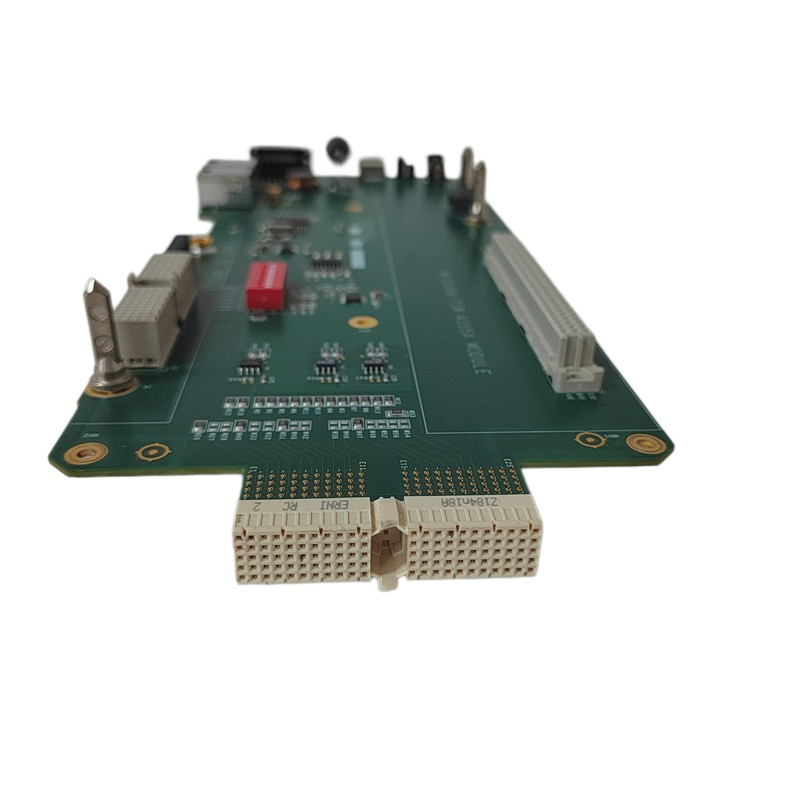

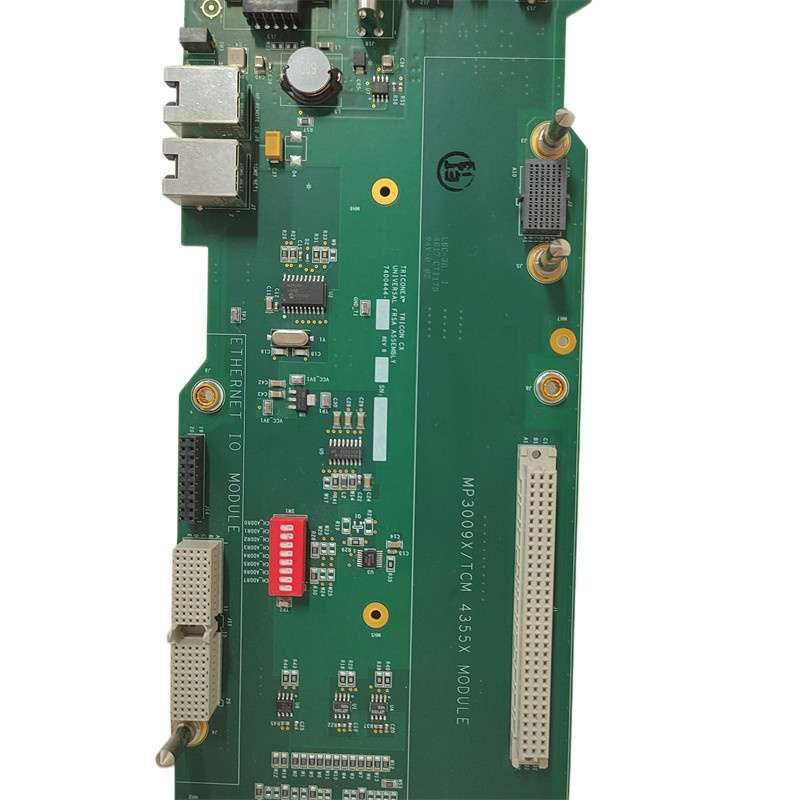

TRICONEX MP3009

TRICONEX MP3009 Main Processor Module

Overview

The TRICONEX MP3009 is a high-performance Main Processor (MP) module designed for Triconex Safety Instrumented Systems (SIS). As the core processing unit, it executes safety logic, diagnostics, and communication within a Triple Modular Redundancy (TMR) architecture, ensuring maximum reliability and fault tolerance.

Engineered for mission-critical environments, the MP3009 supports Safety Integrity Level 3 (SIL 3) applications and is widely used in industries such as oil & gas, chemical processing, and power generation.

Key Features

  • Dual-Core Processor Architecture for high-speed logic execution
  • Triple Modular Redundancy (TMR) for fault-tolerant operation
  • SIL 3 Certified (IEC 61508 compliant)
  • Advanced Diagnostics with continuous self-testing
  • Hot-Swappable Design to minimize system downtime
  • High Reliability for safety-critical applications
  • Flexible Configuration with TriStation software support

Technical Specifications

Parameter Description
Product Type Main Processor Module (MP / UMP)
Model MP3009
Processor Dual-core / 32-bit architecture
Safety Level SIL 3
Power Supply 24 VDC (via chassis)
Memory Flash + RAM for logic and runtime
Communication Ethernet, RS-232/RS-485 (via modules)
Operating Temperature Approx. -40°C to +70°C
Diagnostics Built-in real-time monitoring
Redundancy Triple Modular Redundancy (TMR)

Functions

  • Executes safety-critical control logic
  • Performs real-time diagnostics and fault detection
  • Manages communication between system modules
  • Supports online programming and system updates
  • Ensures continuous safe operation in case of hardware faults

Applications

The TRICONEX MP3009 is widely used in high-risk industrial environments, including:

  • Emergency Shutdown Systems (ESD)
  • Fire & Gas Detection Systems (F&G)
  • Burner Management Systems (BMS)
  • Turbine and compressor control
  • Process safety systems in oil, gas, and chemical plants
  • Power generation safety control

Compatibility

  • Triconex Tricon controllers (V9, V10, V11 series)
  • Tricon I/O modules (digital and analog)
  • Communication modules (Modbus, TCP/IP, etc.)
  • TriStation 1131 engineering software

Advantages

  • High system availability and uptime
  • Fast response for critical safety actions
  • Proven reliability in harsh industrial environments
  • Seamless integration into existing Triconex systems
  • Reduced maintenance through advanced diagnostics

Conclusion

The TRICONEX MP3009 is a powerful and reliable main processor module that serves as the “brain” of Triconex safety systems. With its TMR architecture, SIL 3 certification, and advanced processing capabilities, it is an ideal solution for ensuring safe and uninterrupted operation in critical industrial applications.
