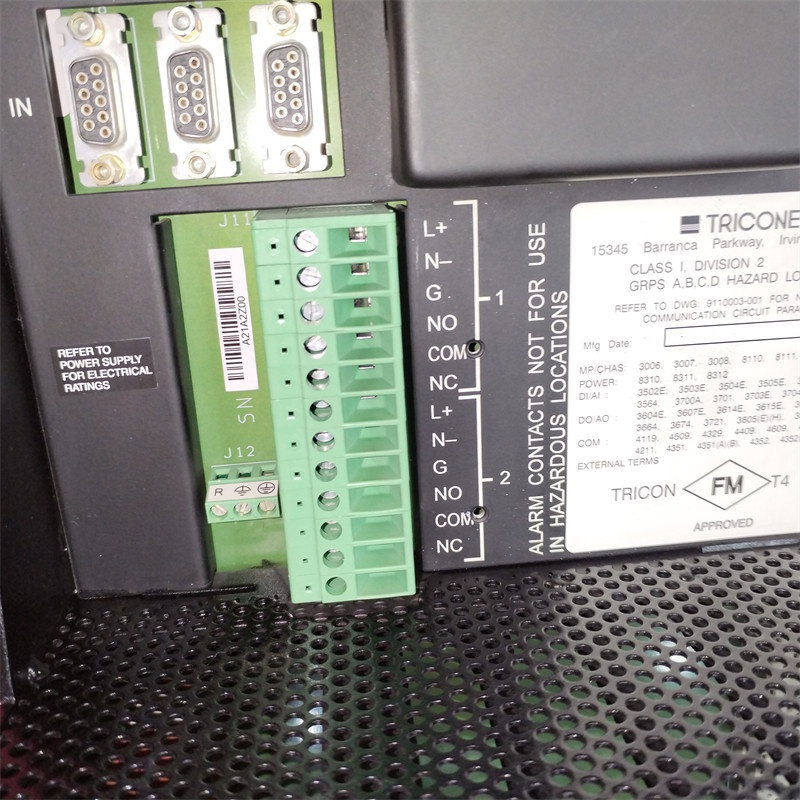

TRICONEX 8110
Triconex 8110 – Overview
The Triconex 8110 is a high-density main chassis used in Safety Instrumented Systems (SIS). It acts as the core platform that houses processors, I/O modules, and communication modules in critical industrial automation environments.
Basic Description
- Model: Triconex 8110
- Type: High-Density Main Chassis
- Function: Backbone of Tricon safety control systems
- Application: Safety-critical process control (SIS)
It is widely used in industries such as oil & gas, chemical plants, power generation, and manufacturing where fail-safe operation is essential.
Key Features
1. Triple Modular Redundancy (TMR)
- Built on TMR architecture, meaning three parallel systems operate simultaneously
- If one fails, the other two continue without interruption
- Ensures high fault tolerance and reliability
2. High-Density Modular Design
- Supports up to 32 I/O modules (varies by configuration)
- Compact design saves cabinet space
- Easy system expansion without major redesign
3. SIL 3 Safety Certification
- Certified to Safety Integrity Level 3 (SIL3)
- Suitable for critical shutdown and protection systems
4. Hot-Swappable Modules
- Modules can be replaced without shutting down the system
- Minimizes downtime and improves maintenance efficiency
5. Redundant Power Supply
- Dual power supplies ensure continuous operation
- Designed for harsh industrial environments
Typical Technical Specifications
- Input Voltage: ~24 VDC (typical)
- Operating Temperature: -40°C to +70°C
- Communication: Ethernet, RS-485, Modbus, etc.
- Humidity: Up to 95% non-condensing
Main Applications
- Emergency Shutdown Systems (ESD)
- Fire & Gas Systems (F&G)
- Turbine Control & Protection
- Process Safety Monitoring
The 8110 chassis forms the hardware foundation of a Tricon system, ensuring safe operation of critical processes.
Advantages
- Extremely high reliability (99.999% availability in some systems)
- Scalable and flexible architecture
- Proven in hazardous environments
- Long lifecycle and global industry adoption
Summary
The Triconex 8110 is not just a module—it’s the core chassis of a safety system, designed for maximum uptime, safety, and fault tolerance. Its TMR architecture and SIL3 certification make it one of the most trusted platforms for critical industrial protection systems.
