TRICONEX 8310

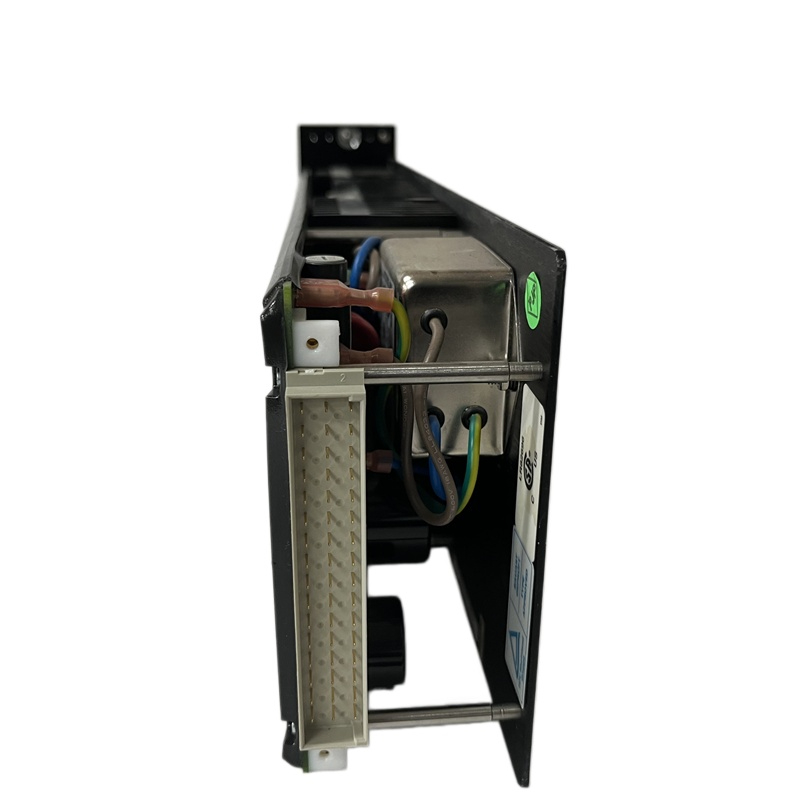

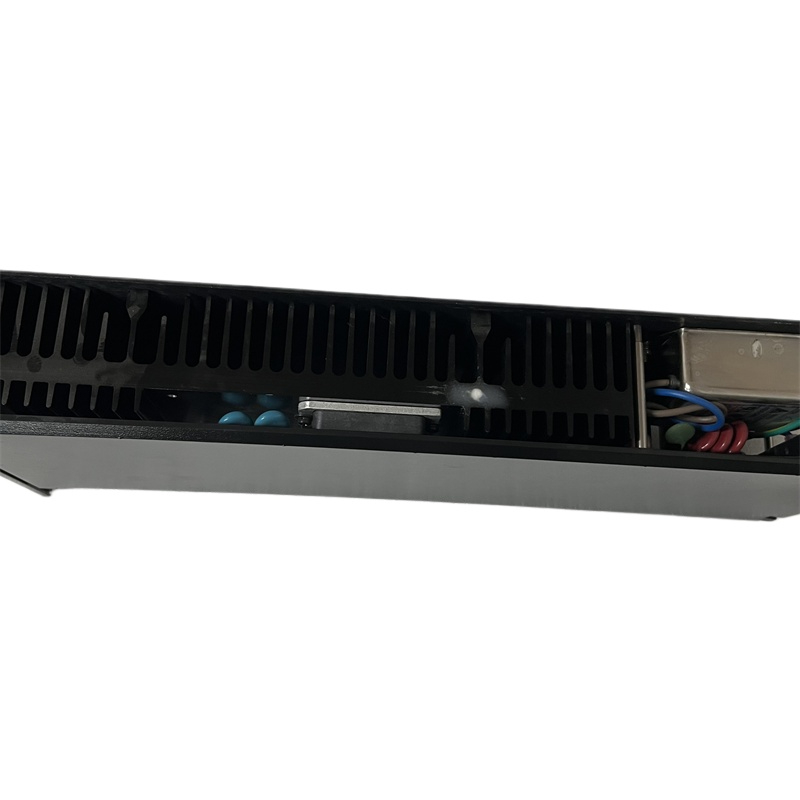

TRICONEX 8310 Power Module – Reliable 120VAC/VDC Power Supply for Tricon Safety Systems

Product Overview

The TRICONEX 8310 Power Module is a high-performance, industrial-grade power supply designed for Triconex safety systems (TMR architecture). It converts incoming AC/DC power into stable DC output to support controllers and I/O modules in critical safety applications.

Engineered for maximum reliability and uptime, the 8310 ensures continuous operation in industries where failure is not an option, such as oil & gas, power generation, and chemical processing.

---

Key Features

• High Reliability for Safety Systems
  Designed for Safety Instrumented Systems (SIS) with fault-tolerant architecture
• Dual Redundant Power Supply
  Each Tricon chassis uses two modules, and either one can fully power the system
• Hot-Swappable Design
  Replace modules without shutting down operations, minimizing downtime
• Wide Input Voltage Range
  Supports both AC and DC input for global industrial environments
• Advanced Diagnostics
  LED indicators: PASS, FAULT, ALARM, TEMP, BAT LOW
• Industrial Protection
  Built-in EMI/RFI filtering and temperature protection for harsh environments

---

Technical Specifications

Parameter	Value
Model	TRICONEX 8310
Product Type	Power Module
Input Voltage	85–140 VAC / 95–180 VDC
Nominal Voltage	120 VAC/VDC
Output Power	175–200 W
Output Voltage	6.5 VDC ±1%
Output Current	Up to 27 A
Fuse	5A time-delay
Output Hold Time	≥20 ms
Installation	Tricon Main / Expansion / RXM chassis

---

System Compatibility

• Tricon Main Chassis
• Tricon Expansion Chassis
• Tricon RXM (Remote Expansion Module)

Installed on the left side of the chassis, the module distributes power to all system components

---

Typical Applications

• Oil & Gas (ESD systems)
• Petrochemical plants
• Power generation
• Fire & Gas systems (F&G)
• Turbine control systems

---

Comparison: 8310 vs 8311 vs 8312

Model	Input Type	Key Use
8310	120 VAC/VDC	Most common, flexible input
8311	24 VDC	Low-voltage DC systems
8312	230 VAC	High-voltage AC systems

The 8310 is the most versatile and widely used option in global projects.

---

Why Choose TRICONEX 8310?

• Proven reliability in mission-critical safety systems
• Supports redundant architecture (TMR)
• Minimizes downtime with hot swap capability
• Designed for harsh industrial environments
• Long lifecycle and global support availability

---

Summary

The TRICONEX 8310 Power Module is a core component for high-availability safety systems, delivering stable, redundant, and reliable power in the most demanding industrial environments.
