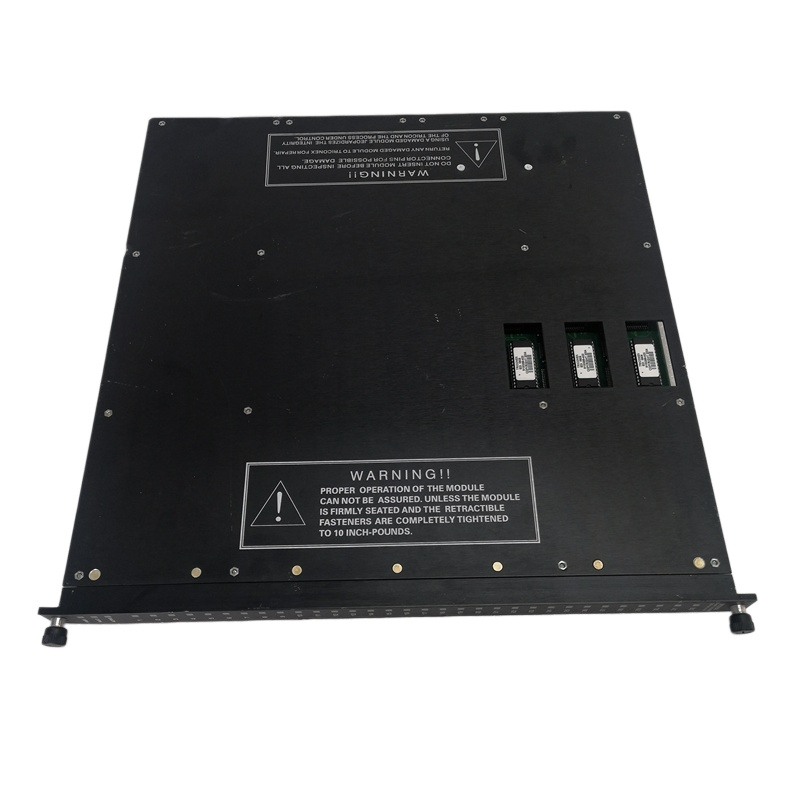

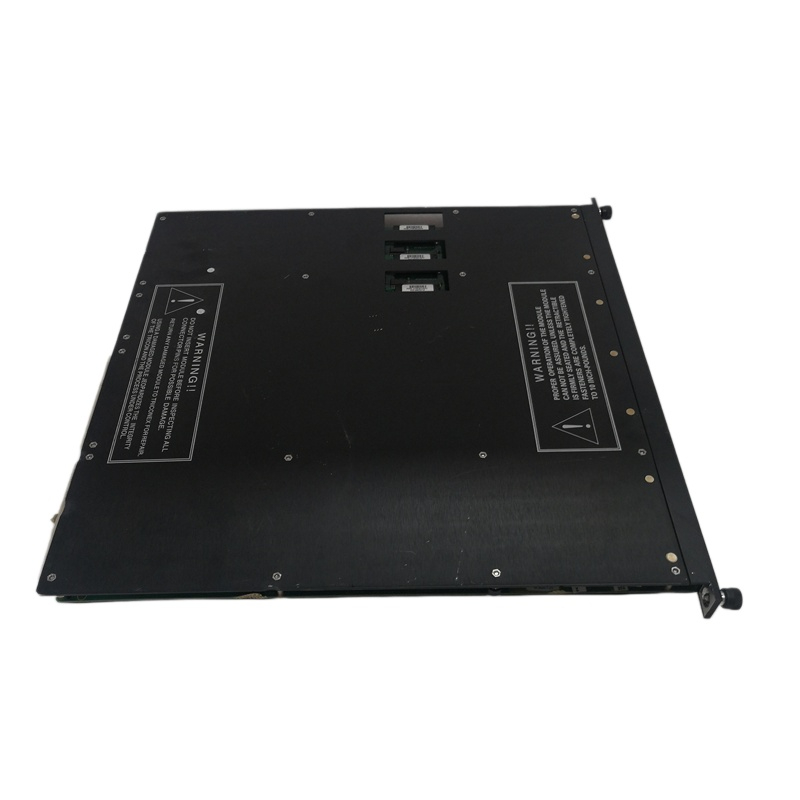

TRICONEX 3503E input/output module

TRICONEX 3503E is a high-density digital input/output module specifically designed for industrial Safety Instrumented Systems (SIS) and is commonly used in critical process control environments.

1. Core Functions and Features

Redundant Architecture:
The module adopts a Triple Modular Redundancy (TMR) design, ensuring that the system can continue operating even if a single module fails.

Application Scenarios:
It is widely used in safety-critical applications across high-risk industries such as oil and gas, petrochemical, power generation, and nuclear power.

Safety Level:
The module complies with IEC 61508 SIL 2/3 safety standards, and some models are certified by ATEX, FM, and CSA.

2. Digital Input/Output Specifications

Digital Inputs:

• Typically supports 96 digital input channels

• Compatible with dry contacts and voltage signals

• Nominal input voltage: 24 VDC (recommended range: 20–42.5 VDC)

• Maximum supported input: 42.5 VAC/DC

Digital Outputs:

• Provides 48 digital output channels

• Output voltage: 24 VDC

Response Time:

• Fast response performance, typically less than 10 ms, with some specifications below 1 ms.

3. Physical and Electrical Characteristics

Dimensions and Weight:

• Generally designed for a 19-inch rack-mounted system

• Approximate size: 120 mm × 80 mm × 50 mm

• Weight: approximately 15 kg

Operating Temperature:

• Operating temperature range: –40°C to +70°C

• Storage temperature range: –40°C to +85°C

Summary

The TRICONEX 3503E is a high-reliability safety I/O module designed for industrial control applications that require strict Safety Integrity Levels (SIL 2/3), ensuring stable and safe operation in critical industrial environments.
