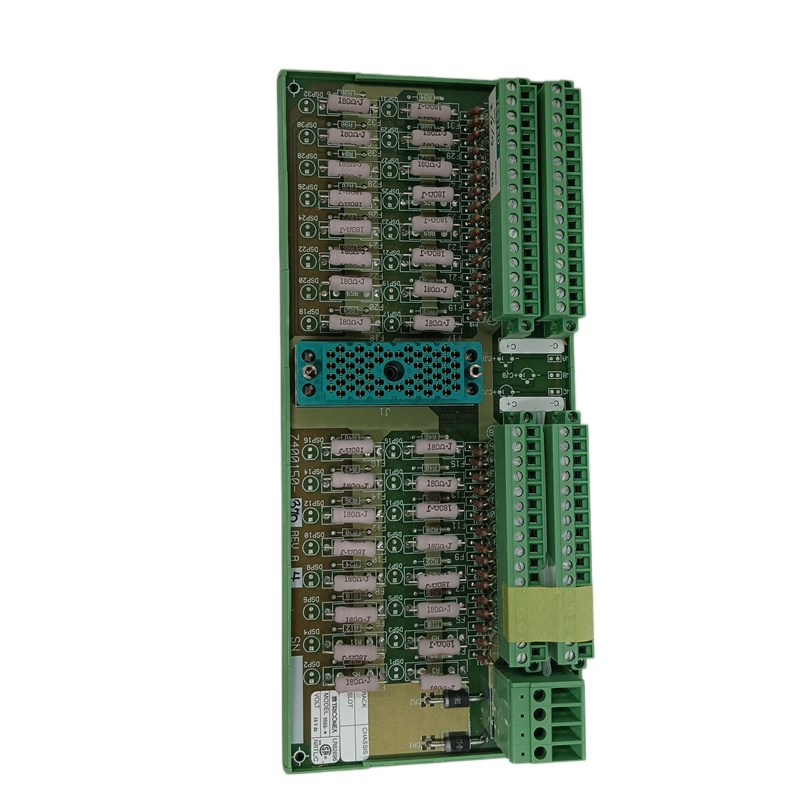

TRICONEX 9566 7400150-370 3000540-380 refers to a combination of components used in the Triconex series control system developed by Schneider Electric.
1. Key Component Breakdown and Corresponding Functions
This group of model numbers usually refers to an I/O communication backplane and the modules it supports. The specific relationships are as follows:
| Model | Component Name | Function / Purpose |
|---|---|---|
| TRICONEX 9566 | Control System Module Base | This is the base model of the backplane. It physically connects all input/output modules (such as digital and analog modules) to the Triconex system CPU (such as Triconex MP3110 and Triconex MP3101), while also providing power distribution and signal transmission channels. |
| 7400150-370 | I/O Communication Base | This is the specific sub-model of the base, designed for connecting digital input/output modules. Its primary role is to manage and transmit digital signals between the modules and the controller. |

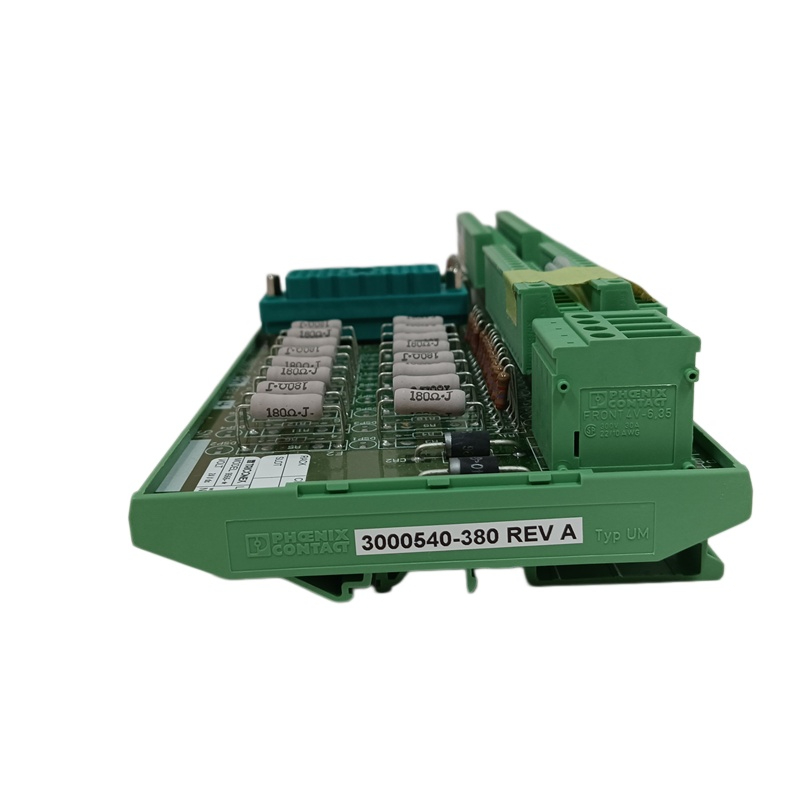

| 3000540-380 | Digital Output Module | This is the functional module installed on the base. It converts control signals from the control system (typically binary signals such as 0 or 1) into physical electrical signals that drive field devices such as valves, solenoid valves, and contactors. |
2. Typical Combination Application Scenarios
Typical applications:
In Triconex systems, this combination is commonly used for industrial field control tasks such as valve control and discrete signal monitoring. For example, it can control the opening and closing of valves in chemical processes or read the status of switch signals.
System integration:
The base (9566 / 7400150-370) must be inserted into the CPU chassis of the Triconex system (for example, the Triconex MP3110). The 3000540-380 digital output module is then installed into the base slot to complete the signal output path from the controller to the field devices.
