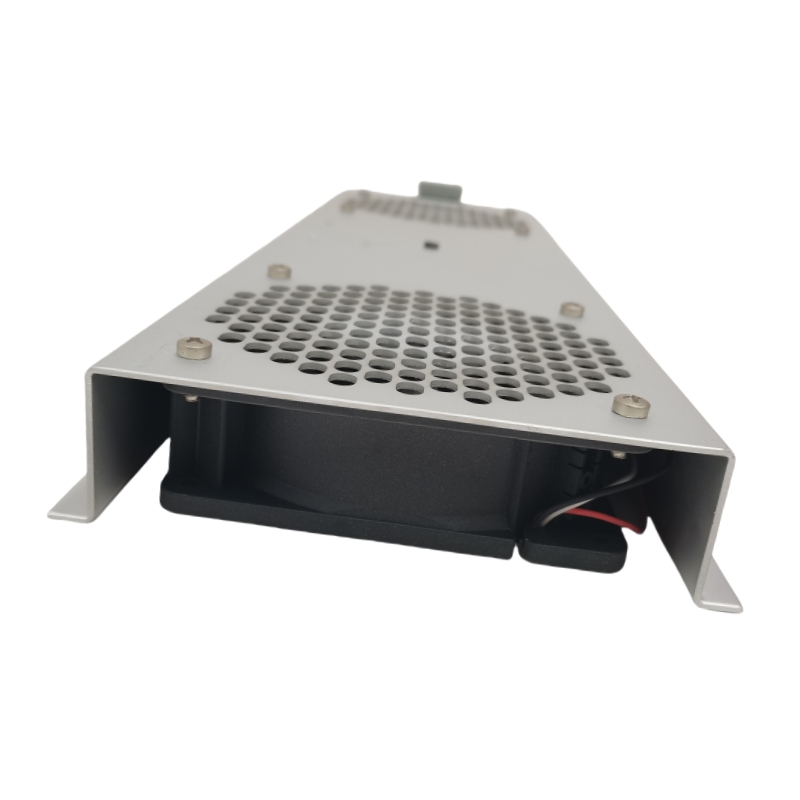

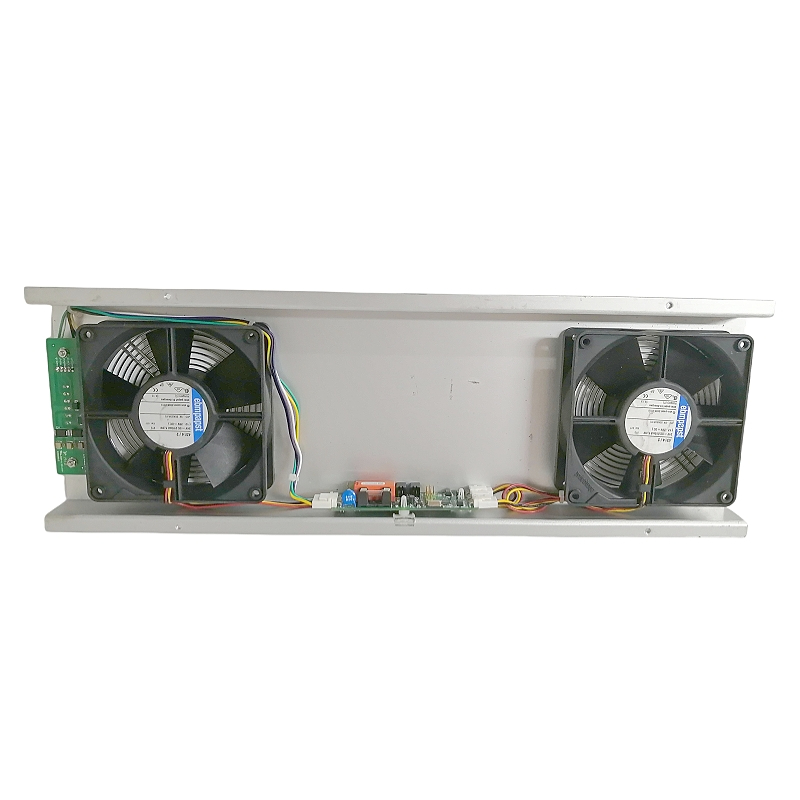

HIMA K9202 Cabinet Fan Module

HIMA K9202 is a Cabinet Fan Module manufactured by HIMA. It belongs to the T4 series (or supporting modules for the T4 control cabinet system) and is primarily used for heat dissipation and environmental management in industrial control cabinets, such as safety control cabinets.

1. Main Technical Specifications

Product Number: K9202 (Part number examples: 996920202)
Function Positioning: High-efficiency cooling, low-noise operation, modular design

Cooling Performance:
Designed with high airflow capacity to quickly exhaust hot air from inside the cabinet (typical airflow approx. 120 CFM / 200 m³/h).

Noise Level:
Optimized fan blade structure, with operating noise as low as approx. 45 dB(A).

Speed Control:
Typically equipped with 3-speed adjustment to meet different cooling requirements.

Protection Rating:
IP20 (dust protection) or IP54 (dust and water protection).
Some models offer NE21 explosion-proof certification.

Electrical Specifications:

• Input Voltage: 24 V DC

• Power Consumption: Approx. 25 W

• Speed: Approx. 2800 RPM

Physical Dimensions:
Compact design, approximately 100 × 60 × 30 mm, with a weight of about 0.5–2 kg.

2. Application Environment and Advantages

Applicable Industries:
Oil & gas, chemical processing, power generation, machinery manufacturing, and other high-reliability industrial environments.

Core Advantages:

• High Reliability:
  Specifically designed for safety-critical automation systems, ensuring stable operation even under high-temperature conditions.

• Easy Maintenance:
  Modular design supports quick on-site replacement, reducing maintenance time and costs.

• Safety Monitoring:
  Certain models (e.g., K9202B) include fan operation monitoring functions to enhance overall system safety.

Summary

If you are looking for a cooling solution for HIMA safety control systems or other industrial control cabinets, the K9202 cabinet fan module is a high-performance component specifically designed for this purpose. It offers strong heat dissipation, low noise operation, and excellent environmental durability.
