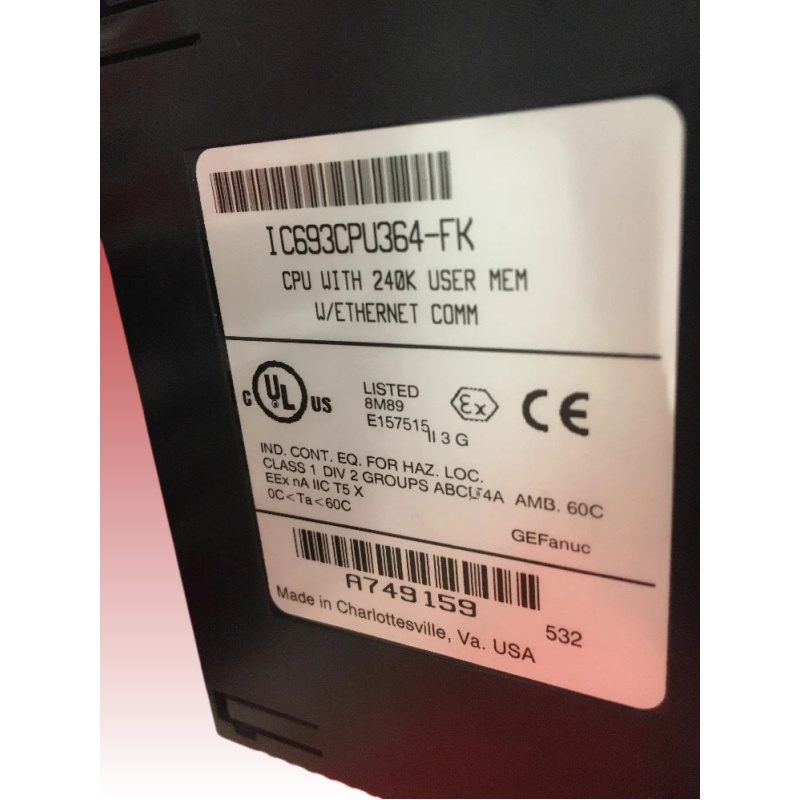

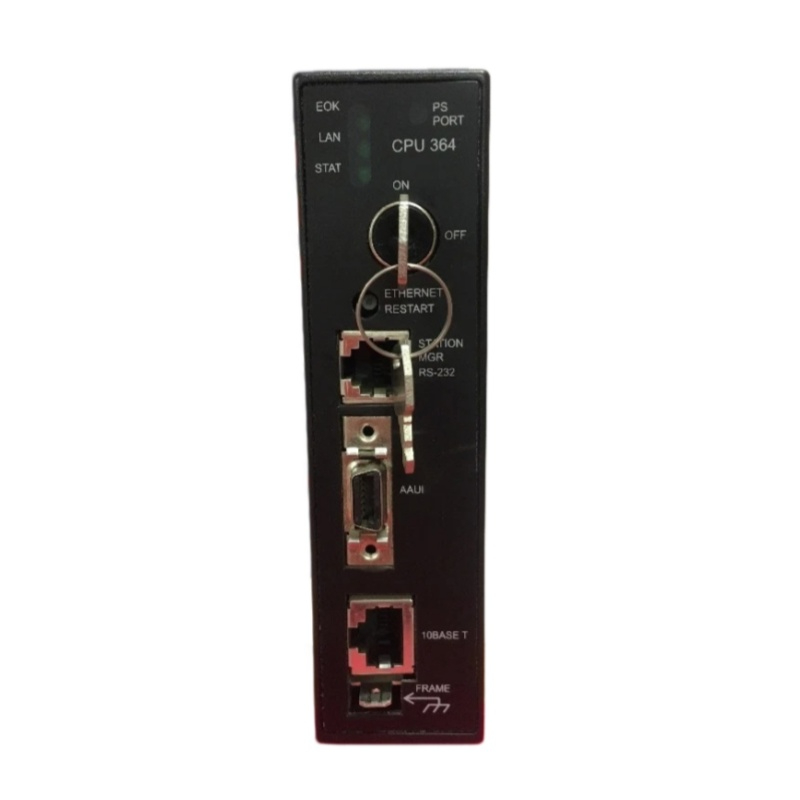

The GE IC693CPU364-FK CPU module is a high-performance controller for the Series 90-30 PLC family, combining PLC processing, Ethernet networking, and expandable I/O capability in a single-slot module.
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Manager: Rhonda
•E-mail: xrjtina@gmail.com
•Tel: + 86-15359273796（WhatsApp）
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
The GE IC693CPU364-FK is a GE Fanuc Series 90-30 PLC CPU module designed for industrial automation control applications. It integrates a high-performance processor with an embedded Ethernet communication interface, providing PLC logic execution, system management, and network connectivity functions. The module is a single-slot CPU unit commonly used in legacy GE Fanuc Series 90-30 control systems.
The CPU364-FK revision belongs to the CPU364 family and provides 240 KB configurable user memory, a 25 MHz 80386EX processor, built-in Ethernet communication, and support for distributed I/O expansion.
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now part of Emerson Automation) |
| Model | IC693CPU364-FK |
| Product Family | Series 90-30 PLC |
| Module Type | Single-slot CPU processor module |
| Processor | Intel 80386EX |
| Processor Speed | 25 MHz |
| User Memory | 240 KB (245,760 bytes) |
| Memory Type | RAM + Flash |
| Typical Scan Rate | 0.22 ms per 1K Boolean logic |
| Discrete Inputs | Up to 2,048 points (%I) |
| Discrete Outputs | Up to 2,048 points (%Q) |
| Internal Coils | 4,096 bits (%M) |
| Temporary Outputs | 256 bits (%T) |
| Global Memory | 1,280 bits (%G) |
| Baseplates Supported | Up to 8 (1 CPU rack + 7 expansion/remote racks) |
| Operating Temperature | 0 to 60 °C |
| Power Consumption | Approx. 1.51 A at +5 VDC |
| Serial Communication | SNP/SNPX via power supply port |
| Ethernet Interface | Embedded Ethernet (10BASE-T / AAUI) |
The IC693CPU364-FK uses a 25 MHz 80386EX processor, providing faster scan execution compared with earlier Series 90-30 CPUs. It supports complex ladder logic, sequencing, arithmetic operations, and process control tasks.
The CPU includes an onboard Ethernet interface, eliminating the need for a separate communication module. It supports PLC networking, programming access, and industrial data exchange through Ethernet networks.
The 240 KB user memory can be allocated among program storage, register memory (%R), analog input (%AI), and analog output (%AQ) areas according to application requirements.
The module supports up to eight Series 90-30 baseplates, allowing expansion with additional digital I/O, analog modules, communication modules, and specialty modules.
Designed for continuous industrial operation, the CPU provides battery-backed clock functions, Flash memory storage, fault monitoring, and robust PLC control capabilities.
The IC693CPU364-FK mainly consists of:
The GE IC693CPU364-FK is widely used in legacy industrial automation systems, including:
Its Ethernet capability makes it suitable for integration with SCADA systems, HMIs, and industrial networks.
The GE IC693CPU364-FK CPU module is a high-performance controller for the Series 90-30 PLC family, combining PLC processing, Ethernet networking, and expandable I/O capability in a single-slot module. Although it is now considered a legacy product, it remains valuable for maintaining existing industrial automation installations where Series 90-30 systems are still in service.
