GE E9000 18”

1. Product Overview

The GE E9000 18” is part of GE’s Evolution Series E9000 Motor Control Center (MCC) family, a modular industrial power distribution and motor control platform designed for centralized control, protection, and monitoring of motors and electrical equipment. The E9000 series integrates motor starters, feeder units, control devices, communication components, and intelligent monitoring solutions into a standardized floor-mounted enclosure system.

The “18” designation is commonly associated with an 18-inch class section/unit configuration within the E9000 MCC lineup (depending on the specific ordering configuration). GE E9000 systems are designed for industrial environments requiring high reliability, maintainability, and flexible expansion.

---

2. Technical Parameters

Parameter	Description
Product Family	GE Evolution Series E9000 Motor Control Center
Product Type	Low-voltage motor control and power distribution system
Configuration	Modular, compartmentalized MCC structure
Enclosure	Steel-enclosed industrial cabinet
Voltage Class	Typically up to 600 VAC class (configuration dependent)
Bus System	Main horizontal bus and vertical distribution bus
Unit Type	Plug-in / withdrawable motor starter and feeder units
Protection	Circuit protection, overload protection, optional arc-flash mitigation features
Communication	Supports intelligent monitoring and industrial communication options
Mounting	Floor-mounted lineup assembly
Standards	Designed for industrial MCC standards including NEMA/UL requirements

The E9000 platform supports multiple unit sizes, starter configurations, feeder arrangements, and intelligent control options depending on application requirements.

---

3. Product Features

3.1 Modular Design

• Standardized MCC compartments allow easy system expansion.
• Plug-in units can be replaced or upgraded without major system modifications.
• Multiple starter and feeder combinations are available.

3.2 High Safety Performance

• Isolated bus structure helps reduce accidental contact risks.
• Separate wiring channels simplify installation and maintenance.
• Optional arc-flash mitigation units improve personnel protection.

3.3 Easy Maintenance

• Draw-out starter units allow faster replacement.
• Front-accessible components reduce downtime.
• Interchangeable units simplify field modifications.

3.4 Intelligent Monitoring Capability

The E9000 can integrate intelligent control components, communication modules, metering devices, and operator interfaces for improved equipment diagnostics and energy management.

3.5 Flexible Communication

Supported options may include:

• Ethernet-based industrial communication
• Serial communication
• Fieldbus connectivity
• Remote monitoring interfaces

---

4. Structural Composition

The GE E9000 18” configuration typically consists of the following major assemblies:

4.1 Main Structure

• Heavy-duty steel enclosure frame
• Vertical sections joined into a complete MCC lineup
• Protective doors and access panels

4.2 Bus System

Includes:

• Main horizontal power bus
• Vertical distribution bus
• Grounding bus

The bus system distributes electrical power throughout the MCC sections while maintaining mechanical isolation and safety protection.

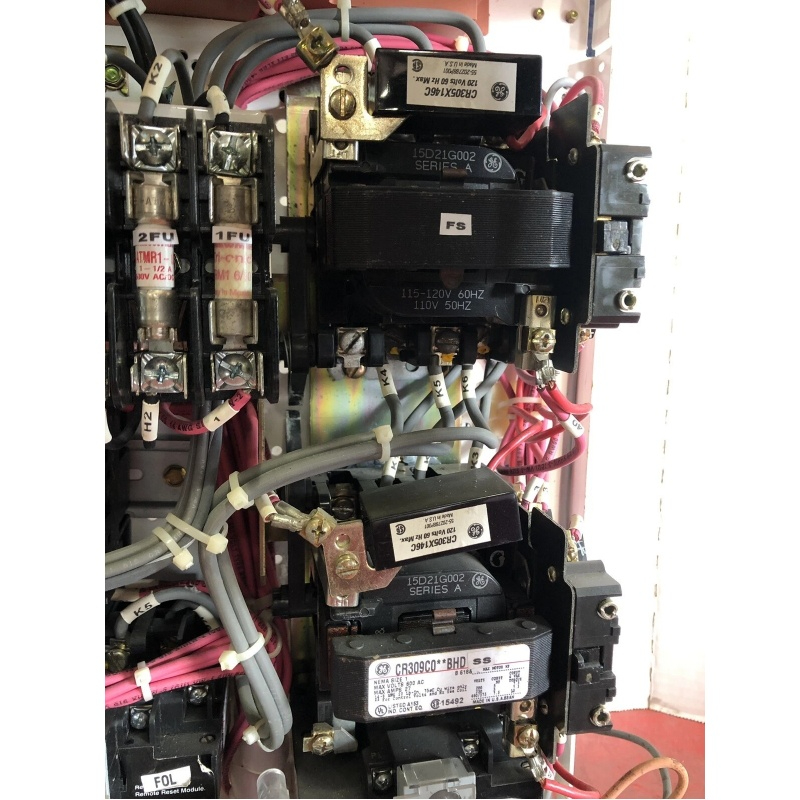

4.3 Motor Control Units

Typical components include:

• Motor starters
• Contactors
• Overload relays
• Circuit breakers or disconnect switches
• Control transformers
• Terminal blocks

4.4 Control and Monitoring Components

May include:

• PLC interfaces
• Intelligent I/O modules
• Metering devices
• Human-machine interfaces (HMI)
• Communication modules

GE’s E9000 platform supports intelligent MCC solutions integrating monitoring and automation functions.

---

5. Application Fields

The GE E9000 18” MCC system is widely used in industries requiring centralized motor control and power management.

Industrial Manufacturing

Applications include:

• Production lines
• Machine tools
• Automated manufacturing systems

Power Generation

Used for:

• Auxiliary motor control
• Pump and fan systems
• Electrical distribution management

Oil & Gas

Typical applications:

• Compressor systems
• Pump stations
• Process equipment control

Water Treatment

Used for:

• Pump control
• Filtration systems
• Wastewater processing

Mining and Heavy Industry

Applications:

• Conveyor systems
• Crushers
• Large motor-driven equipment

Building Infrastructure

Used in:

• HVAC motor control
• Large mechanical systems
• Facility automation

---

6. Advantages

• High reliability: Designed for continuous industrial operation.
• Flexible configuration: Supports various motor starter and feeder arrangements.
• Reduced downtime: Modular withdrawable units simplify maintenance.
• Improved safety: Segregated compartments and protective barriers enhance operator safety.
• Automation ready: Supports integration with modern industrial control systems.

---

7. Conclusion

The GE E9000 18” Motor Control Center configuration is a robust industrial electrical control solution designed for reliable motor management, power distribution, and automation integration. Its modular architecture, safety-focused design, and intelligent monitoring capabilities make it suitable for demanding applications in manufacturing, energy, infrastructure, and process industries.
