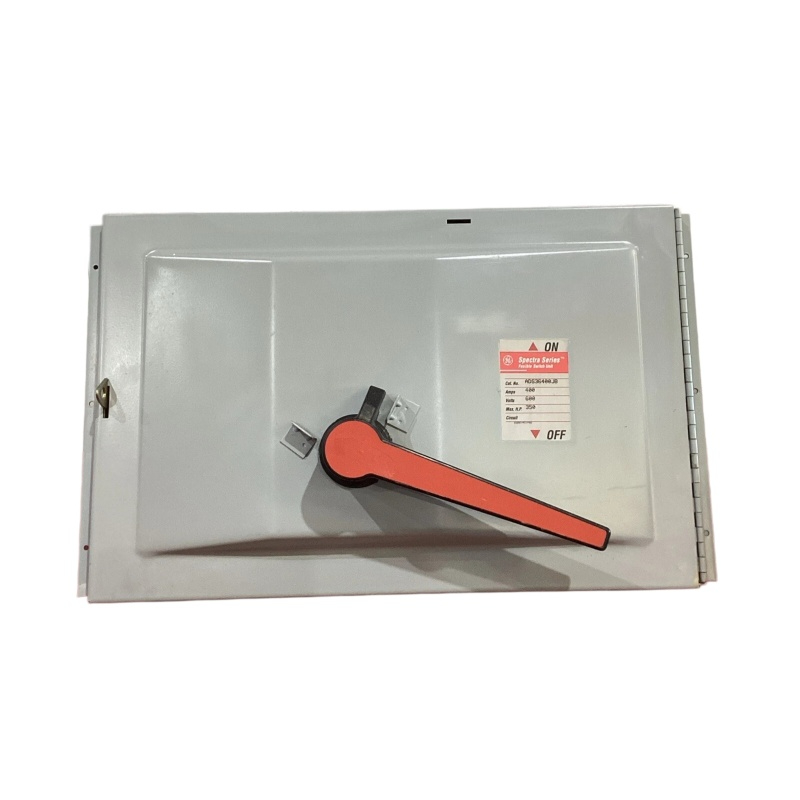

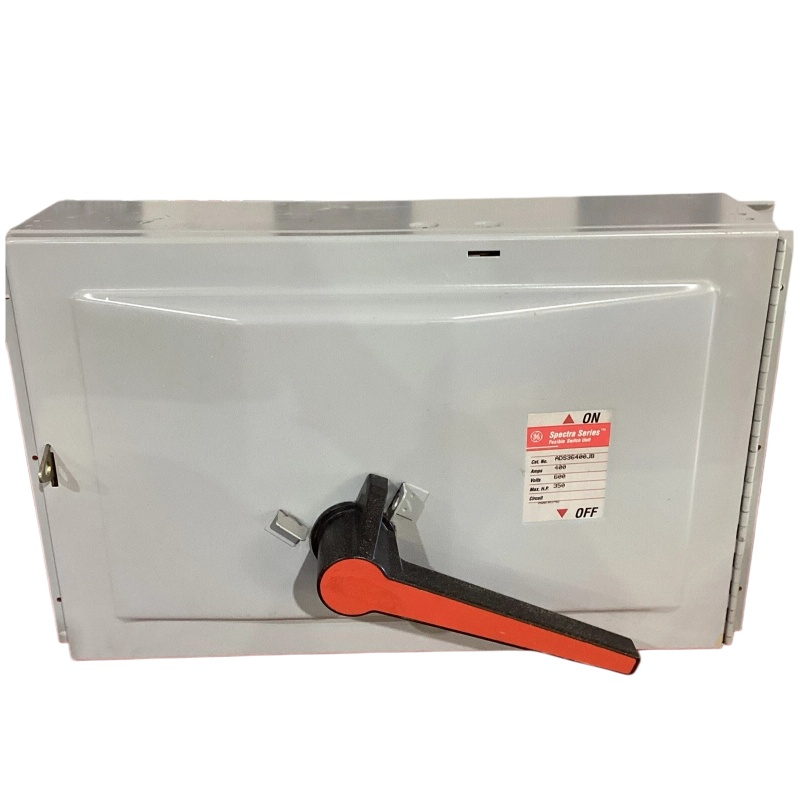

GE ADS36400JB

General Electric ADS36400JB is a Spectra Series™ fusible panel switch designed for low-voltage power distribution applications. It is a heavy-duty switch module used in commercial and industrial electrical panelboard systems for circuit isolation and overcurrent protection.

1. Product Overview

The GE ADS36400JB is a 400A, 600VAC, 3-pole fusible panel switch that uses Class J fuses for circuit protection. It belongs to the GE Spectra Series panelboard switch family and is designed for plug-in installation within compatible Spectra power panelboards.

2. Technical Parameters

Parameter	Specification
Manufacturer	GE (General Electric)
Model	ADS36400JB
Product Type	Fusible Panel Switch
Series	Spectra Series
Rated Current	400 A
Rated Voltage	600 VAC
Poles	3 Pole
Fuse Type	Class J
Configuration	Single-unit fusible switch
Mounting Type	Plug-in panelboard module
Interrupt Rating	Up to 200 kA @ 480 V (application dependent)
Application	Power distribution and circuit protection



3. Product Features

• High Current Capacity
  Supports 400 ampere loads for large commercial and industrial power systems.
• Class J Fuse Protection
  Provides reliable protection against overloads and short-circuit conditions.
• Spectra Series Compatibility
  Designed for GE Spectra panelboards, allowing modular installation and easier maintenance.
• High Short-Circuit Withstand Capability
  Suitable for applications requiring high fault-current protection.
• Industrial-Grade Construction
  Built for demanding electrical distribution environments such as factories, commercial facilities, and infrastructure projects.

4. Structural Composition

Main components typically include:

• Fusible switch mechanism
• Three-phase power contacts
• Class J fuse mounting assembly
• Plug-in connection terminals
• Operating handle mechanism
• Panelboard mounting hardware
• Protective enclosure components

5. Application Fields

GE ADS36400JB is commonly used in:

• Industrial power distribution systems
• Manufacturing plants
• Data centers
• Commercial buildings
• Motor feeder circuits
• Electrical switchboards and panelboards
• Facility power management systems

6. Advantages

• Provides both disconnecting and overcurrent protection functions
• Reduces downtime through modular replacement design
• Suitable for high-power electrical loads
• Compatible with GE Spectra distribution equipment
• Supports demanding industrial environments

7. Conclusion

The GE ADS36400JB is a robust 400A, 600V, 3-phase fusible panel switch engineered for reliable power distribution and protection. With Class J fuse compatibility, Spectra Series integration, and high fault-current capability, it is widely used in industrial and commercial electrical systems requiring dependable circuit isolation and protection.
