GE VMIVME-5565-010000 332-015565-010000

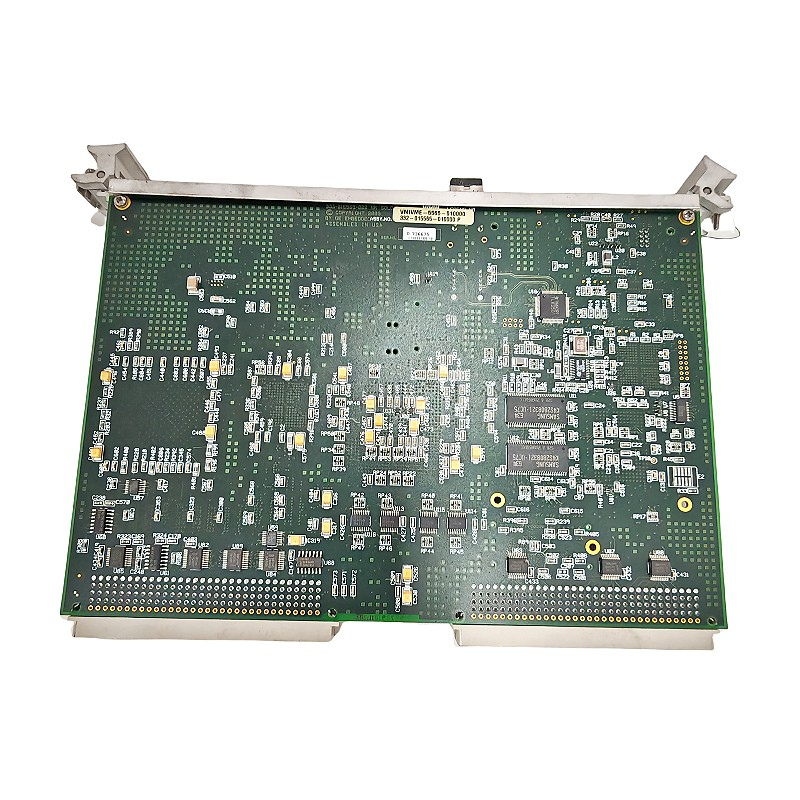

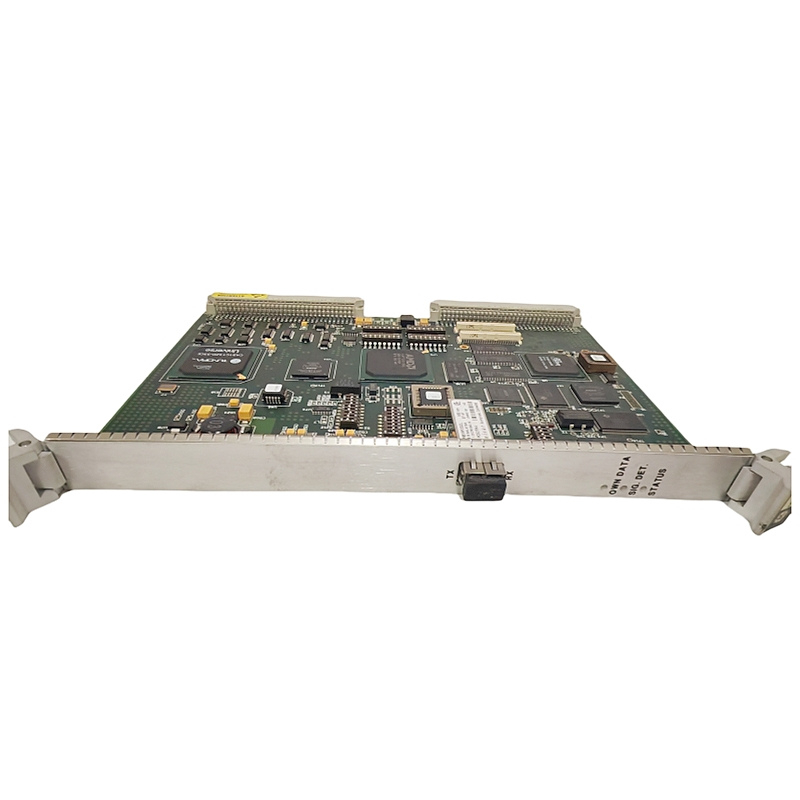

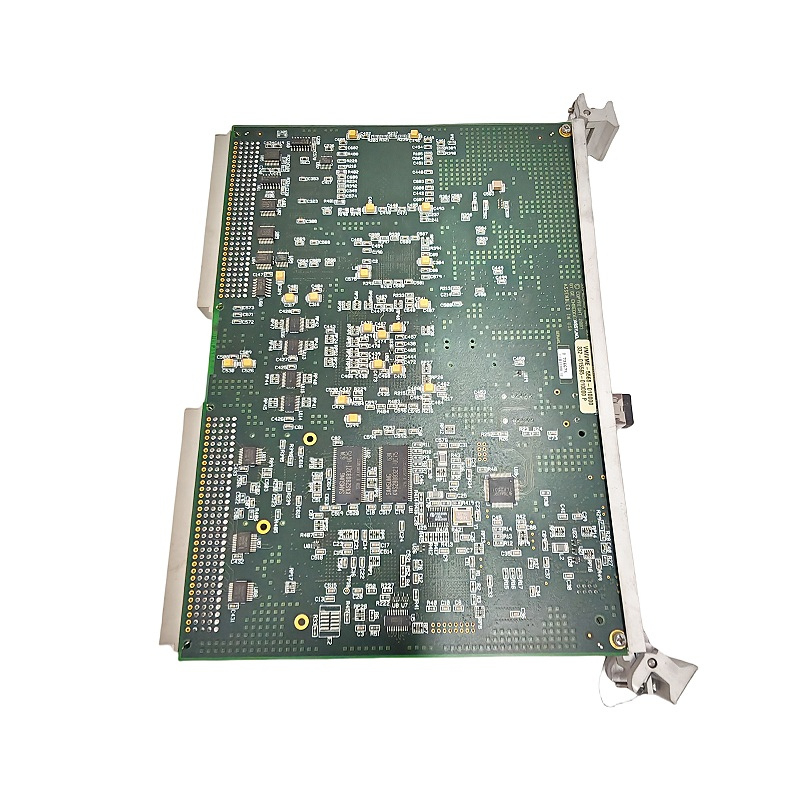

GE VMIVME-5565-010000 (332-015565-010000) Reflective Memory Module

The GE VMIVME-5565-010000 is an ultra-high-speed fiber-optic reflective memory node card designed for deterministic, real-time data sharing across distributed control and simulation systems. It enables multiple computers, PLCs, and embedded controllers to share memory simultaneously with extremely low latency and no CPU overhead.

This module belongs to GE’s VMIC reflective memory family, widely used in industrial automation, simulation, power generation, telecommunications, and defense applications.

---

Product Overview

The VMIVME-5565 provides memory-to-memory communication over a high-speed fiber-optic network. When data is written to one node, it is automatically replicated to all nodes in the network, creating a shared memory environment across up to 256 systems.

This architecture removes the need for complex networking protocols and ensures deterministic system behavior in real-time applications.

---

Key Features

Real-Time Deterministic Data Sharing

• Fiber-optic reflective memory network
• Data automatically broadcast to all nodes
• No software overhead or CPU intervention
• Interrupt capability between nodes

This ensures predictable and reliable system performance in time-critical applications.

Ultra-High-Speed Performance

• Serial connection speed: 2.12 Gbaud
• Sustained network throughput: up to 170 MB/s
• Microsecond-level latency

The high bandwidth and low latency make the module ideal for real-time simulation and control systems.

Large Shared Memory Capacity

• 64 MB or 128 MB onboard SDRAM reflective memory
• Dynamic packet size: 4–64 bytes
• Dual DMA channels for efficient data transfer

These capabilities enable fast and efficient real-time data exchange.

Highly Scalable Fiber Network

• Supports up to 256 nodes in one network
• Multimode fiber distance up to 300 m
• Single-mode fiber distance up to 10 km

This allows flexible expansion of distributed control systems.

Industrial-Grade Reliability

• Built-in error detection and ECC protection
• High noise immunity
• Designed for harsh industrial environments
• VMEbus plug-in module format

Ensures long-term stable operation in demanding environments.

---

Technical Specifications

Parameter	Specification
Model	VMIVME-5565-010000
Part Number	332-015565-010000
Product Type	Reflective Memory Node Card
Bus Type	VMEbus
Communication	Fiber optic
Serial Speed	2.12 Gbaud
Network Throughput	Up to 170 MB/s
Memory Size	64 MB / 128 MB SDRAM
Nodes Supported	Up to 256
Operating Temperature	−20°C to +85°C
Power Requirement	5 VDC

Sources:

---

Typical Applications

The VMIVME-5565 reflective memory module is commonly used in:

• Distributed Control Systems (DCS)
• Power generation and turbine control
• Real-time simulation and training systems
• Industrial automation and robotics
• Aerospace and defense systems
• Telecommunications and data acquisition

Its deterministic real-time communication makes it ideal for mission-critical environments.
