EMERSON A6140

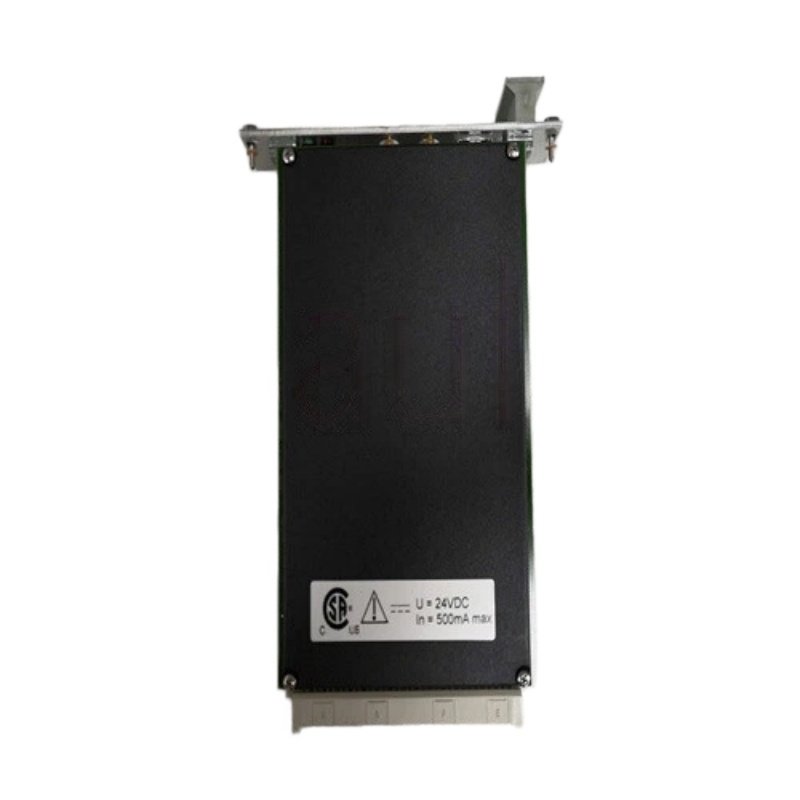

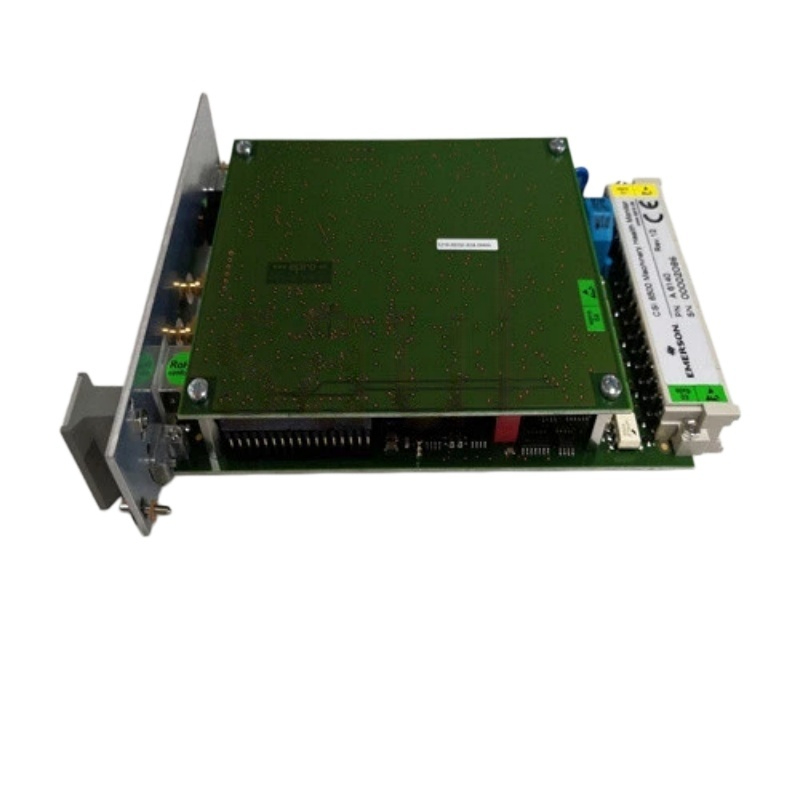

Emerson A6140 Shaft Absolute Vibration Monitor – Product Overview

The Emerson A6140 Shaft Absolute Vibration Monitor is a dual-channel machinery protection module designed for continuous vibration monitoring and early fault detection in critical rotating equipment. As part of the AMS 6500 Machinery Health Monitor system from Emerson, the A6140 provides reliable protection for turbines, compressors, pumps, and generators operating in demanding industrial environments.

---

Product Description

The A6140 module measures absolute shaft vibration by combining signals from shaft displacement probes and seismic vibration sensors. This advanced measurement method provides a more accurate representation of rotor movement, especially in sleeve-bearing machines where bearing housing motion affects vibration readings.

The module is widely used in predictive maintenance and automated shutdown systems to prevent equipment damage and costly downtime.

---

Key Features

• Dual-channel shaft absolute vibration monitoring
• API 670 compliant machinery protection
• Hot-swappable plug-in design for easy maintenance
• Built-in self-diagnostics and sensor monitoring
• Configurable alarm relays for trip and warning levels
• Analog outputs for integration with DCS/PLC systems
• Continuous online condition monitoring

---

Main Functions

Absolute Shaft Vibration Measurement

The A6140 calculates true shaft vibration relative to free space by combining:

• Shaft displacement sensor signals
• Bearing housing vibration signals

This provides highly accurate vibration data for machinery protection.

Machinery Protection & Alarm Management

The module continuously compares vibration values against configured limits and can trigger:

• Alarm notifications
• Relay outputs
• Automatic machine shutdown

This helps prevent catastrophic failures and improves plant safety.

Condition Monitoring & Predictive Maintenance

The A6140 supports long-term monitoring and trending, enabling early detection of:

• Rotor imbalance
• Misalignment
• Bearing wear
• Mechanical looseness

---

Technical Specifications

Parameter	Specification
Channels	2
Frequency Range	Up to 10 kHz
Measurement Accuracy	±2% Full Scale
Analog Outputs	0/4–20 mA, 0–10 V
Relay Outputs	4 configurable relays
Power Supply	24 VDC
Operating Temperature	−20°C to +70°C
Installation	AMS 6500 Rack System

Supported Sensors

• Displacement probes: 6422 / 6423 / 6424 / 6425
• Piezoelectric or seismic vibration sensors

---

Typical Applications

The Emerson A6140 is widely used in industries requiring high-reliability rotating machinery monitoring:

• Power generation (steam and gas turbines)
• Oil and gas compressors
• Petrochemical plants
• Heavy manufacturing
• Hydropower facilities

---

Benefits

• Improves equipment reliability and uptime
• Enables early fault detection
• Reduces maintenance and repair costs
• Supports predictive maintenance strategies
• Enhances plant safety and operational efficiency

---

Conclusion

The Emerson A6140 Shaft Absolute Vibration Monitor is a critical component for modern machinery protection systems. With accurate vibration measurement, advanced diagnostics, and seamless integration into the AMS 6500 platform, it provides dependable protection for high-value rotating equipment.
