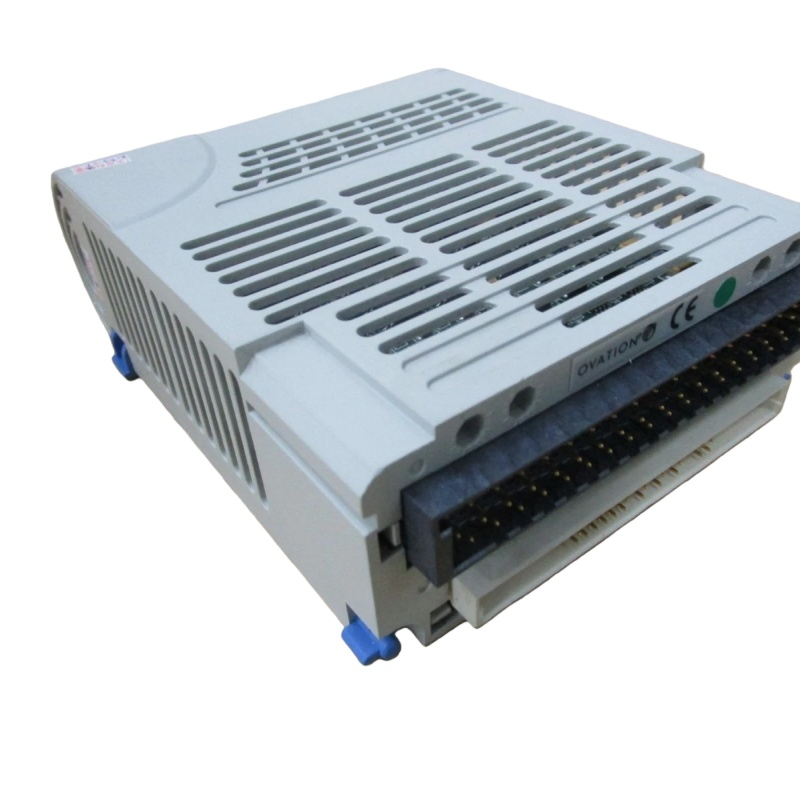

Emerson 5X00058G01 – HART Analog Input Module (Ovation DCS)

EMERSON 5X00058G01 is a HART-enabled analog input module designed for the Ovation distributed control system (DCS). It is widely used in power generation, oil & gas, water treatment, and process industries to acquire 4–20 mA signals while simultaneously accessing HART device diagnostics and configuration data.

---

Overview

The module receives analog signals from transmitters and converts them into digital data for the control system. At the same time, it passes HART communication so engineers can monitor device status and perform remote configuration without additional gateways.

Typical uses

• Power plants and turbine systems
• Oil & gas process measurement
• Chemical and petrochemical plants
• Water and wastewater facilities
• General industrial automation

---

Key Features

• HART-enabled analog acquisition
  Reads standard 4–20 mA signals and extracts digital diagnostics from smart field devices.
• Designed for Ovation DCS
  Plug-in module for Ovation I/O carriers/backplane with native compatibility.
• High measurement accuracy
  Typical accuracy around ±0.05% of span with 16-bit conversion.
• Supports multiple transmitters
  Works with both loop-powered (2-wire) and externally powered (4-wire) devices.
• Built-in diagnostics & status LEDs
  Simplifies commissioning and troubleshooting.
• Industrial-grade reliability
  Designed for control cabinets and harsh environments.

---

Technical Specifications (Typical)

Parameter	Details
Input signal	4–20 mA analog with HART overlay
Channels	Typically 8 channels
Resolution	16-bit A/D
Accuracy	±0.05% of span
Sampling rate	~24 ms per channel
Input impedance	~250 Ω
Operating temperature	~0 to 60 °C (typical cabinet installation)
Power	Supplied via Ovation backplane
Weight	Approx. 0.3 kg

Data may vary slightly by revision or system configuration.

---

Advantages in Ovation Systems

• Enables device diagnostics without extra HART multiplexers
• Improves maintenance efficiency and asset visibility
• Ideal for brownfield upgrades and legacy cabinet retrofits
• Provides stable and reliable signal acquisition for critical loops

---

Typical Companion Modules

Commonly used alongside:

• Ovation controller modules
• Analog output modules (e.g., 5X00106G01)
• Communication and terminal base assemblies
