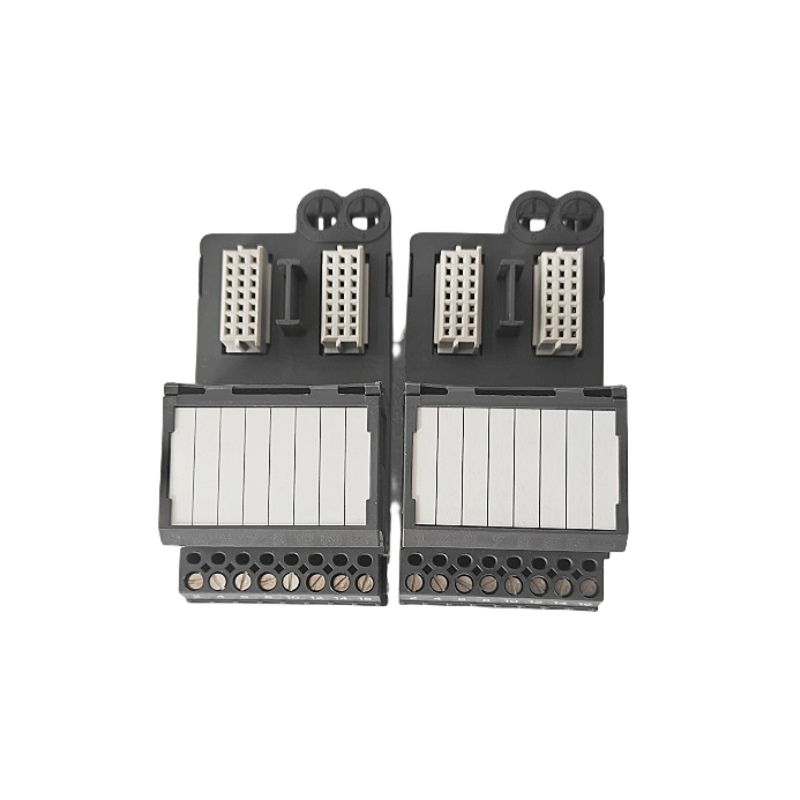

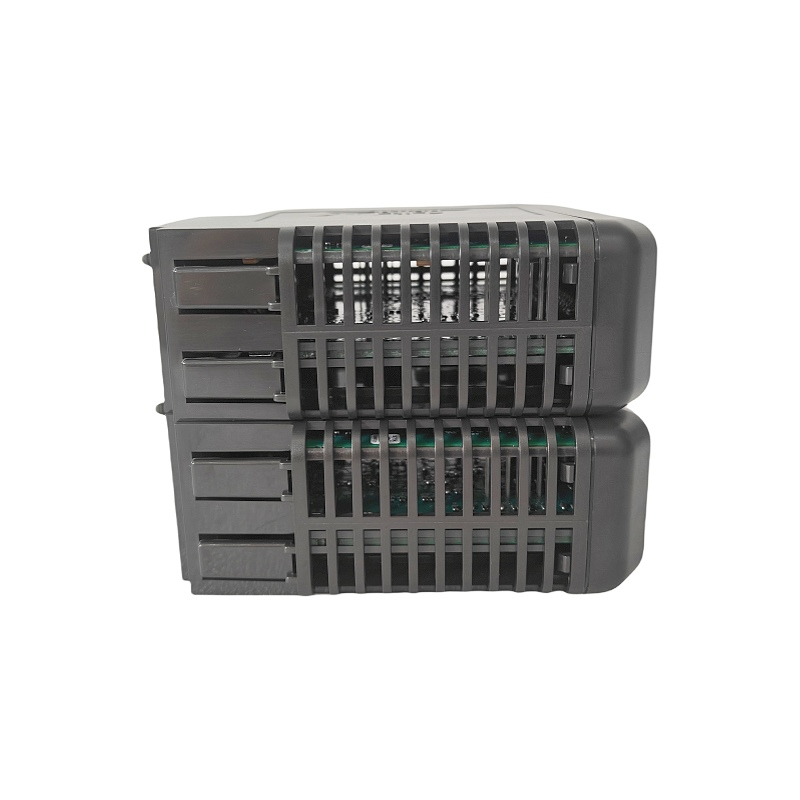

EMERSON VE4003S2B1 analog input module

Emerson VE4003S2B1 is primarily an analog input module, widely used in industrial automation and process control applications. It is especially common in the oil, gas, and chemical industries for monitoring critical process parameters.

Module Type

• Analog Input Card: A DeltaV system input module used to acquire analog signals from field sensors.

• 8-Channel Design: Typically configured with 8 channels, supporting multi-point measurements.

Signal Compatibility

• Current Input: Supports 4–20 mA and 0–20 mA current signals; some sources also mention support for inputs up to 100 mA.

• Voltage Input: Supports 0–10 V DC voltage signals.

• Communication Protocol: Built-in HART communication protocol, enabling remote monitoring and diagnostics of smart field devices.

Performance and Accuracy

• Accuracy: Measurement accuracy is typically within ±0.5%.

• Resolution: Up to 12-bit resolution, ensuring fine-grained and reliable data acquisition.

• Frequency Measurement: Supports frequency measurement with a range from 0.25 Hz to 1.5 MHz.

Physical Specifications

• Power Supply: Integrated 24 V DC power supply.

• Dimensions and Protection: Typical dimensions are approximately 150 mm × 100 mm × 50 mm, with an IP65 protection rating, making it suitable for harsh industrial environments.

Application Areas

• Process Monitoring: Used to monitor key parameters such as temperature, pressure, and flow.

• Safety Systems: Some references indicate its use in Burner Management Systems (BMS), for monitoring flame detection, fuel pressure, and related signals.

• Industrial Automation: Widely applied in PLC and DeltaV DCS systems to provide stable and reliable process data inputs.

Summary

The Emerson VE4003S2B1 is a high-performance analog input module designed to convert field analog variables (such as temperature, pressure, and current signals) into digital signals for control systems. With its high accuracy, durability, and HART communication capability, it serves as a critical “sensor interface” in industrial environments, ensuring that control systems receive reliable, real-time process data.
