The Bently Nevada TK-3E 177313-02-02 is an electric-driven proximity system test kit used to calibrate and verify vibration and position monitoring systems for rotating machinery.
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Manager: Rhonda
•E-mail: xrjtina@gmail.com
•Tel: + 86-15359273796（WhatsApp）
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
The Bently Nevada TK-3E 177313-02-02 is an electric-driven proximity system test kit used to calibrate and verify vibration and position monitoring systems for rotating machinery. It is widely used in power plants, oil & gas, petrochemical, and heavy industry maintenance.
Part number 177313-02-02 indicates:
The TK-3E is designed to simulate shaft vibration and shaft position, allowing engineers to test and calibrate:
This ensures monitoring systems read accurately before startup and during maintenance.
The kit enables end-to-end loop testing without removing sensors from machines.
Typical tests:

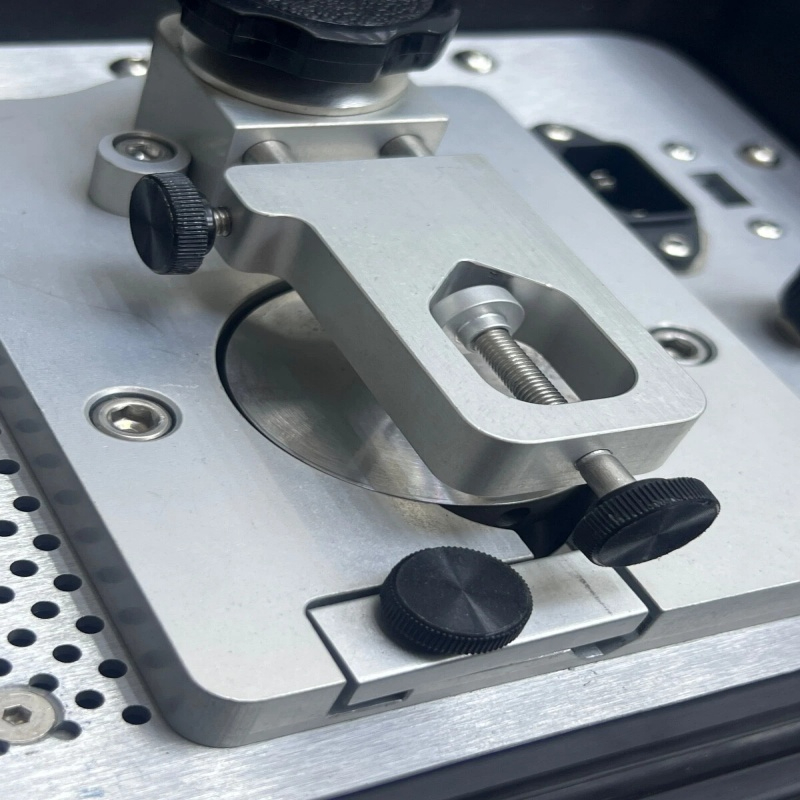

The TK-3E uses a motor-driven wobble plate to generate controlled vibration.
Typical vibration output:
This allows realistic testing of turbine, compressor, and motor monitoring systems.
A removable spindle micrometer assembly with magnetic base allows accurate probe positioning.
Features:
Used to verify probe scale factor and monitor accuracy.
Includes a built-in tachometer test capability to simulate rotor speed and verify monitor readings.
| Parameter | Value |
|---|---|
| Product type | Electric driven proximity system test kit |
| Power | 95–125 VAC or 190–250 VAC |
| Vibration amplitude | 50–254 µm (2–10 mils) p-p |
| Speed range | 0–5000 cpm ±1000 |
| Micrometer range | 0–25.4 mm |
| Operating temperature | 0–50 °C |
| Protection rating | IP54 |
| Dimensions | 195 × 299 × 248 mm |
| Weight | ~5–8 kg |
The TK-3E is used in preventive maintenance and commissioning of rotating equipment such as:
It is essential for machinery protection system reliability and predictive maintenance programs.
Main benefits:
