Bently 3500/22 288055-01h Transient Data Interface

The 3500/22 TDI is the communication and data-acquisition interface between the Bently Nevada 3500 monitoring rack and host software such as System 1 condition monitoring.

Get Instant Quote
Product Details

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: xrjtina@gmail.com

•Tel: + 86-15359273796（WhatsApp）

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

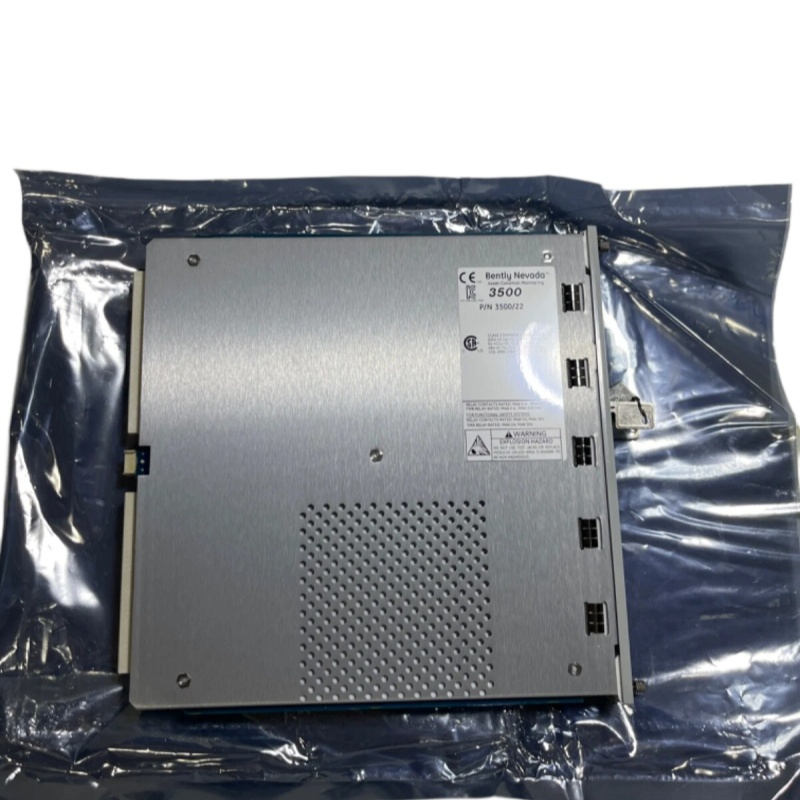

Bently 3500/22 288055-01h

Bently Nevada 3500/22 – 288055-01H (TDI Module) Overview

Model: 3500/22
Part number: 288055-01H
Type: Transient Data Interface (TDI) module for the Bently Nevada 3500 machinery protection system.

1) Product Overview

The 3500/22 TDI is the communication and data-acquisition interface between the Bently Nevada 3500 monitoring rack and host software such as System 1 condition monitoring. It combines the functions of a Rack Interface Module (RIM) and a communication processor into one module.

It is mandatory in every 3500 rack and is installed in slot 1 next to the power supplies.

2) Main Functions

Central rack interface

  • Provides high-speed, bidirectional communication between the 3500 system and software.
  • Integrates RIM + communication processor functions.

Transient & steady-state data collection

  • Continuously collects:
    • Vibration waveform data
    • Start/stop transient data
    • Alarm and event data
  • Transfers data via Ethernet to host software.

Machinery condition monitoring

  • Supports vibration sensors, proximity probes, accelerometers.
  • Enables:
    • Fault detection
    • Predictive maintenance
    • Trend and waveform analysis

3) Key Features

  • High-speed Ethernet communication (10/100Base-T or fiber).
  • USB front port for local configuration.
  • Pre- and post-alarm data capture.
  • Event, time, and threshold triggering.
  • Works with M-series monitors (3500/40M, 3500/42M, etc.).
  • Not part of the protection path (system keeps protecting even if TDI fails).

4) Typical Technical Specifications

Item Specification
Data transfer rate 100 Mbps
Power consumption ~10.5 W
Transient data storage 16 MB
Input channels Up to 16
Ethernet 10/100Base-T, 100Base-FX fiber
USB port Type-B front panel

5) Difference vs 138607-01

  • 288055-01H: Standard TDI version (USB cable included).
  • 138607-01: Base model (USB cable may not be included).

Functionality is otherwise the same.

6) Typical Applications

Used in critical rotating machinery monitoring:

  • Turbines
  • Compressors
  • Pumps
  • Generators
  • Oil & gas / power plants

The module enables continuous monitoring, transient event capture, and integration with plant asset-management systems.
