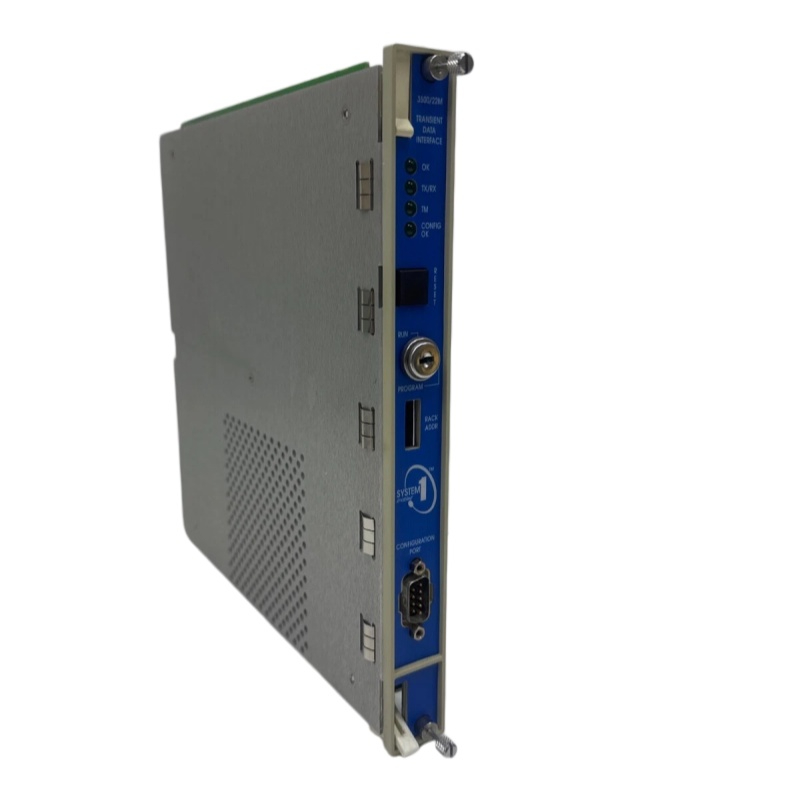

The 3500/22M Transient Data Interface (TDI) is the communication and data-collection hub of the Bently Nevada 3500 Machinery Protection System.
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Manager: Rhonda
•E-mail: xrjtina@gmail.com
•Tel: + 86-15359273796（WhatsApp）
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
Original & Refurbished | Fast Global Delivery | Warranty Available
The 3500/22M Transient Data Interface (TDI) is the communication and data-collection hub of the Bently Nevada 3500 Machinery Protection System. Designed for high-reliability industrial environments, this module connects the 3500 rack to plant networks and condition-monitoring software, enabling real-time machinery diagnostics and predictive maintenance.
Manufactured by Bently Nevada, the 3500/22M is widely used in power generation, oil & gas, petrochemical, and heavy industrial applications.
The 3500/22M (Part Number: 138607-01) combines the functionality of a Rack Interface Module and communication processor into a single compact module. It continuously collects steady-state and transient machinery data from all installed 3500 monitor modules and transmits it to supervisory systems.
Installed directly beside the power supply in a 3500 rack, it acts as the primary communication gateway between the monitoring system and external computers or DCS/PLC networks.
| Parameter | Specification |
|---|---|
| Model | 3500/22M TDI |
| Part Number | 138607-01AA |
| Option Code | 05L00S4L |
| Power Consumption | ~10.5 W |
| Communication Ports | Ethernet / USB / Serial |
| Ethernet Speed | 10/100Base-T |
| Mounting | 3500 Rack (adjacent to PSU) |
| Operating Environment | Industrial, continuous duty |
Specifications may vary slightly depending on configuration options.
The 3500/22M provides the main interface between the monitoring rack and external systems:
This ensures seamless data exchange across the entire plant infrastructure.
The TDI gathers and streams critical machinery data including:
The module ensures continuous monitoring of asset health.
A key advantage of the 3500/22M is its ability to record high-resolution transient data during:
This data is essential for root-cause analysis and predictive maintenance.
The 3500/22M is deployed in critical rotating equipment such as:
It plays a vital role in preventing unplanned downtime and catastrophic failures.
The configuration string typically represents:
Exact decoding requires the official Bently Nevada option matrix.
