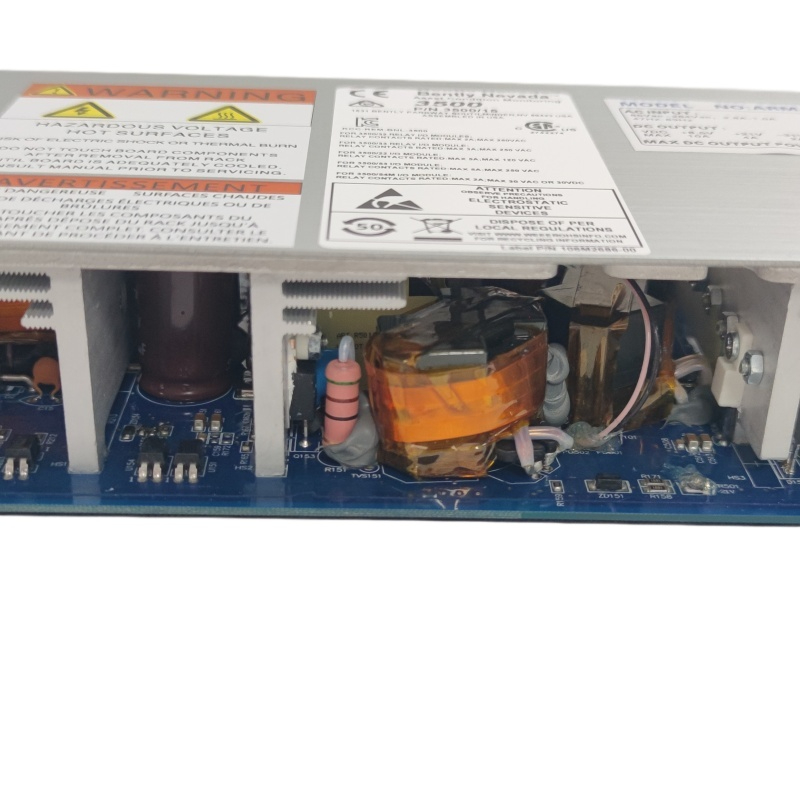

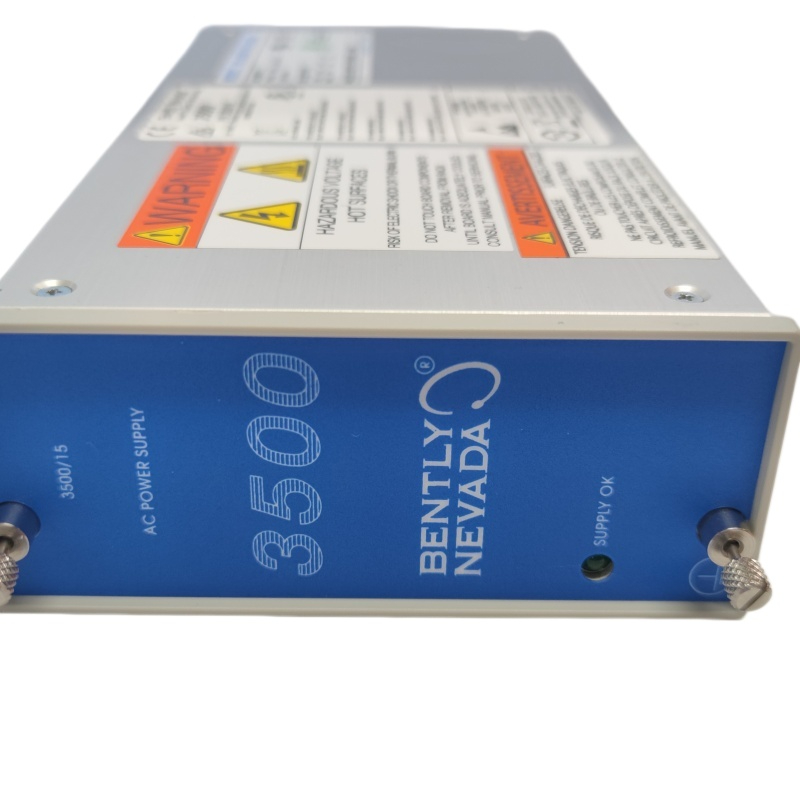

BENTLY 106M1079-01 Power Supply Module

BENTLY 106M1079-01 is a general-purpose Power Supply Module in the Bently Nevada 3500/15 series, designed to provide a stable 24 VDC power supply for monitoring systems.

Key Technical Specifications

Electrical Characteristics

• Input Voltage: Supports 90–264 VAC (non-hazardous areas) or 85–264 VAC (hazardous areas); some versions support 100–240 VAC.

• Output Voltage: +24 VDC

• Power/Current: Power range approximately 2W–120W; output current approximately 5A–10A

Physical Characteristics

• Dimensions: Approximately 216 mm × 102 mm × 44 mm (some data indicate 229 mm × 102 mm × 41 mm).

• Weight: Approximately 1.2 kg – 2.3 kg

• Operating Temperature: -20°C to +70°C; some specifications support -40°C to +85°C

Functions and Applications

• Function: Accepts AC power input and outputs 24 VDC with high reliability and strong shock resistance.

• Applications: Primarily used in machinery monitoring and protection systems across industries such as oil & gas, petrochemical, power generation, metallurgy, and manufacturing.
