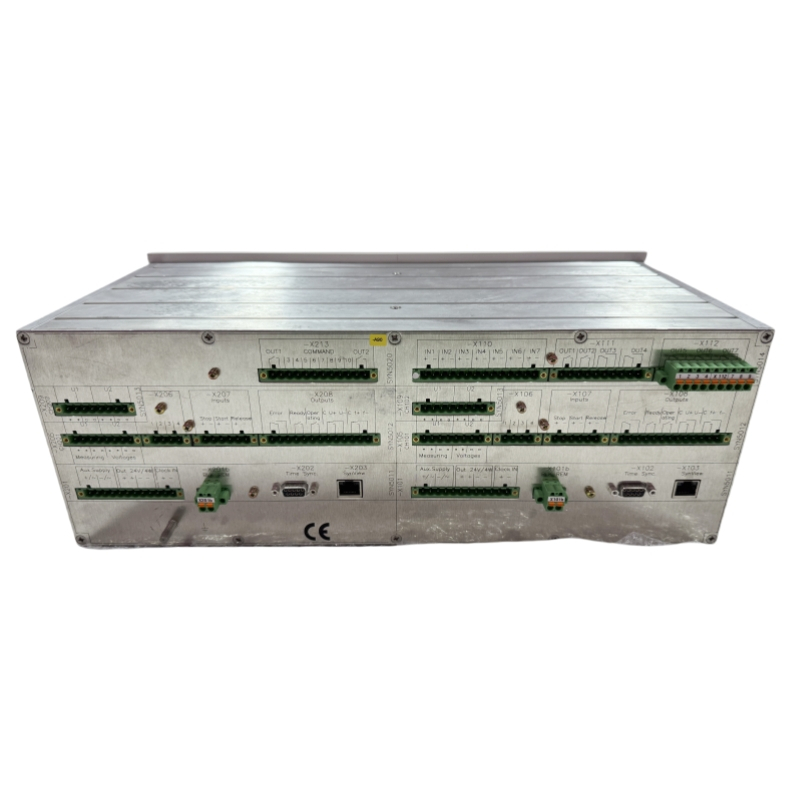

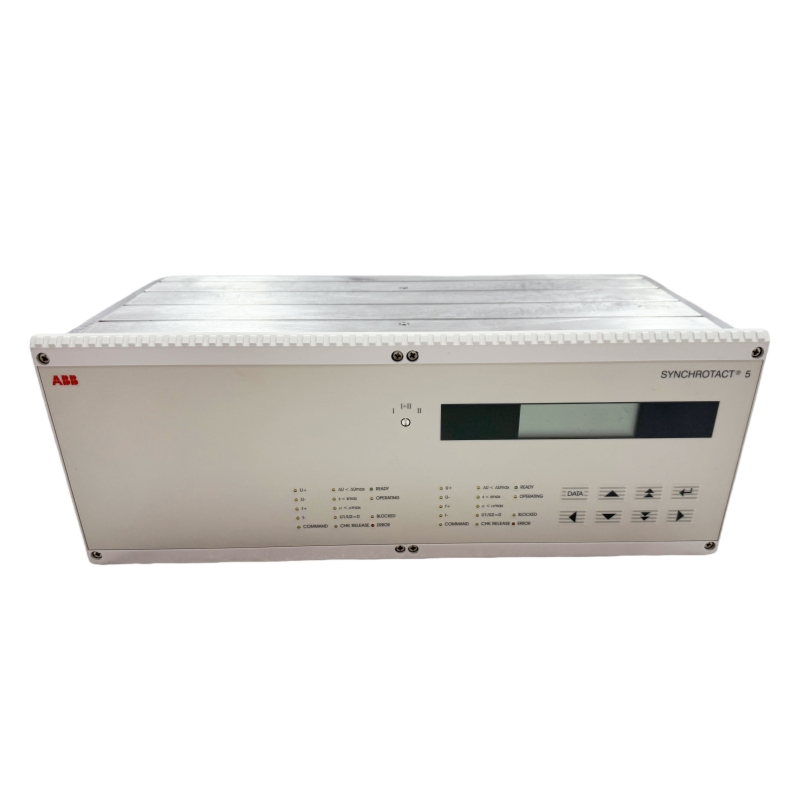

ABB 3BHB006716R0277 SYN5302A-Z.V277 control unit

ABB 3BHB006716R0277 SYN5302A-Z.V277 is a control unit of the ABB SYN 5302A-Z, V277 model.

Core Functions

Dual-channel redundant synchronization:
The unit features hot-standby dual-channel operation and synchronized redundancy, ensuring high system reliability. If one channel fails, the other can take over seamlessly, maintaining uninterrupted synchronization.

Automatic synchronization:
It provides automatic synchronization by precisely matching the voltage, frequency, and phase angle of a generator (or transformer) with the power grid, and automatically controlling circuit breaker closing.

Technical Specifications

Processor: PowerPC architecture processor.
Memory: 256 MB RAM and 2 GB storage.
Communication interfaces: Supports multiple communication protocols (such as PROFINET, EtherNet/IP, Modbus, etc.) and modular expansion. It offers strong immunity to interference and is suitable for harsh operating environments.

Typical Applications

Power plants and hydropower stations:
Used for safe and stable synchronization of generator sets with the grid or with other generators.

Industrial facilities:
Suitable for process control applications such as oil refining, petrochemical plants, and automotive manufacturing.

Marine systems and small power grids:
Provides reliable power synchronization in mobile or small-scale grid environments.

Installation and Operating Environment

Operating temperature range: –20 °C to +70 °C.
Protection rating: IP20, with vibration-resistant design.
