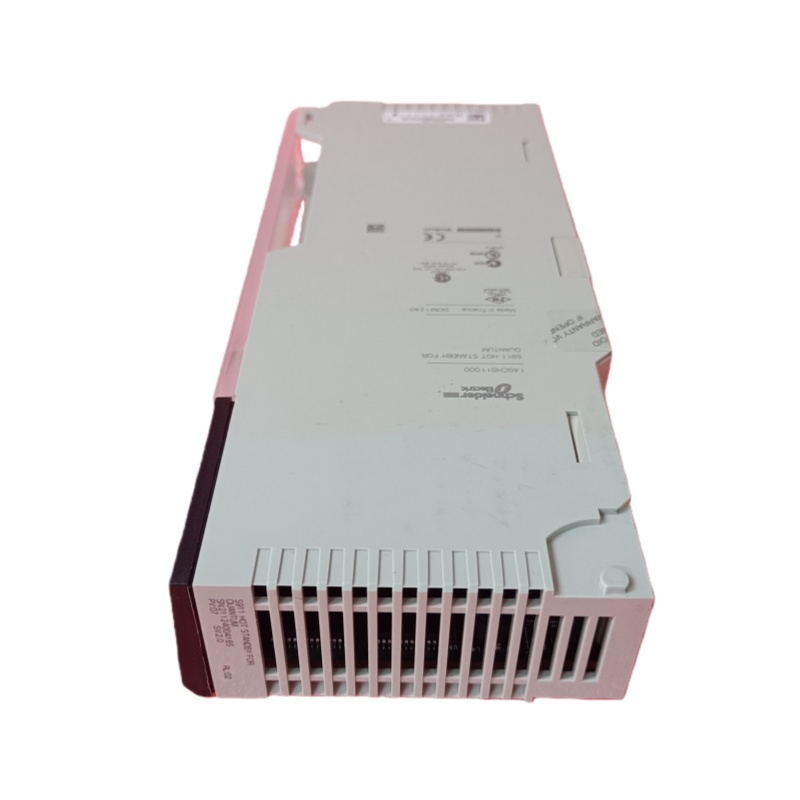

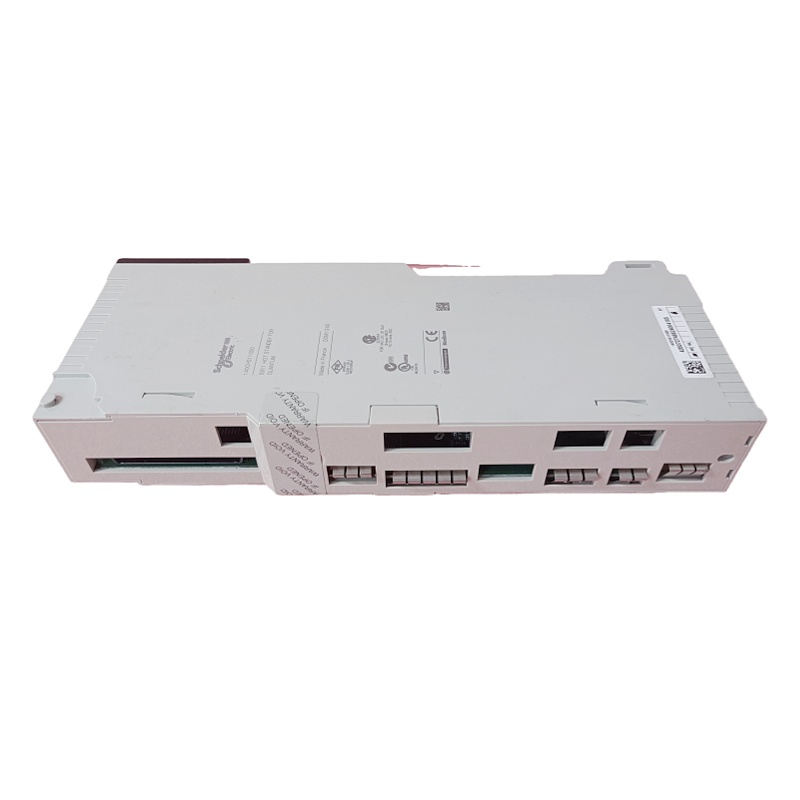

Schneider 140CHS11000 PLC systems

Schneider 140CHS11000 is a commonly used module model in the Modicon series PLC (Programmable Logic Controller) systems manufactured by Schneider Electric.

1. Core Definition: High-Speed Counter Module

This is the most common definition of this model. It is primarily used for motion control and high-precision counting applications.

Application Scenarios:
Used to collect high-speed pulse signals, supporting both differential and single-ended inputs.

Key Features:

• 4 independent counting channels: Supports differential and single-ended inputs.

• Counting frequency: Up to 500 kHz (depending on the encoder type).

• Input signal types: Supports incremental encoders (A/B/Z phases) and pulse generators (PNP/NPN).

2. Core Definition: Hot Standby Module

According to descriptions from Schneider Electric, some documentation classifies this module as a Hot Standby module.

Function:
When the primary PLC fails, the Hot Standby module can quickly take over control tasks, ensuring continuous system operation and high reliability.

Features:

• High reliability

• Designed for long-term continuous operation in industrial environments

• Complies with international safety standards
