Schneider TSXDSY16T2 Discrete Output Module

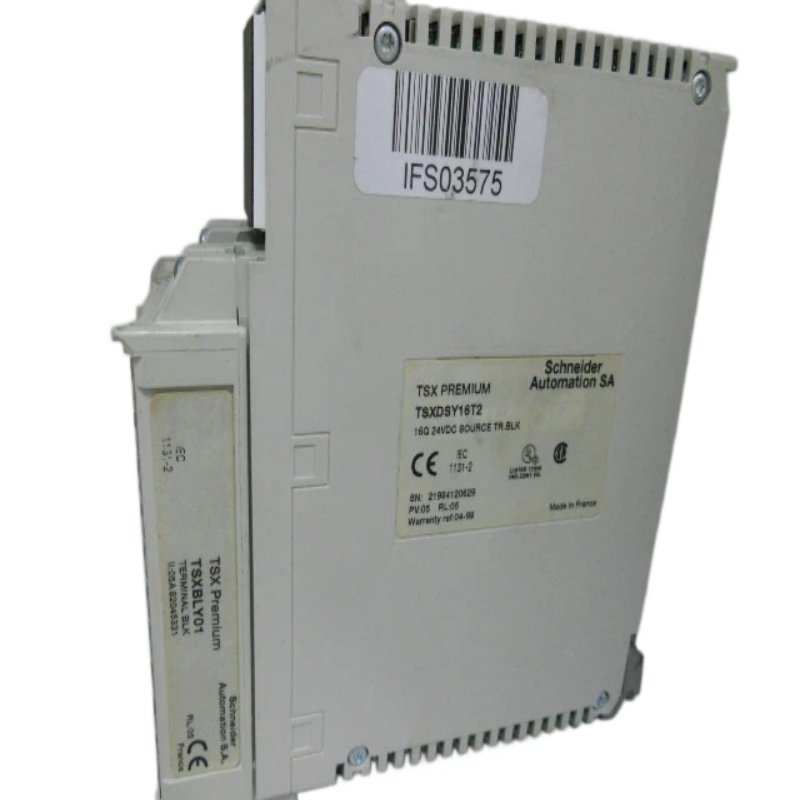

Schneider Electric TSXDSY16T2 is a Discrete Output Module launched by Schneider Electric. It belongs to the Modicon Premium series (also known as the Premium Source output module range). It is typically used in PLC systems to control various loads such as relays, indicator lamps, and solenoid valves.

1. Basic Specifications

• Product Type: Discrete Output Module

• Series: Modicon Premium

• Model: TSXDSY16T2

2. Output Characteristics

• Number of Output Points: 16 points (each point is an independent output channel)

• Output Type: Solid-state output

• Operating Voltage: 24 VDC (compatible with 19–30 VDC, compliant with IEC 61131-2 standard)

• Current per Channel: 0.5 A (some references indicate 0.625 A)

• Maximum Total Current: 7 A

3. Power Consumption and Protection

• Power Consumption: 1.1 W

• Overvoltage Protection: Implemented using Transil diodes (with transistor-based protection design)

• Leakage Current: ≤ 0.5 mA (in the OFF state)

4. Compatibility and Interface

• Backplane/Rack: TSXRKY8

• Adapter/Accessory: Typically used with AS-BDAP-216 terminal block

• Wiring Method: Screw terminal block

This module is widely used in industrial automation applications requiring reliable 24V DC digital output control.
